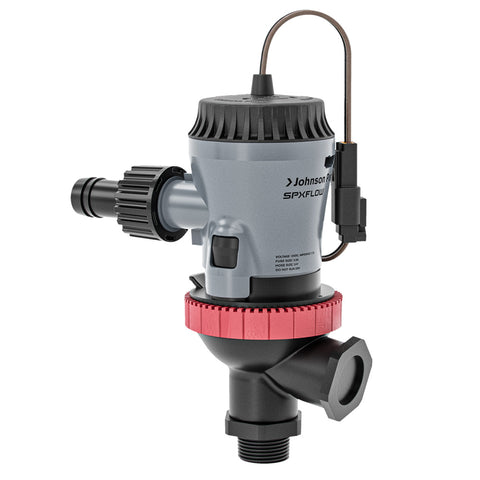

Aqua O₂ Twin Port 800 GPH Aerator Pump - Flex Mount - 12V

Johnson Pump cartridge aerator pumps offer ease of convenience and years of reliable service. This pump has an improved design with an easy-to-change/replace motor cartridge.

Features:

All Aqua O2 Cartridge Aerator Pumps offer the convenience of using only one intake for both the livewell and washdown pump
Includes a 3/4 NPT seacock inlet
High-flow impeller design
Quick-change motor connection
360-degree pump discharge rotation
Switchless automatic bilge pump with low-amp resistance monitoring
Durable thermoplastic housing design commonality with removable motor cartridge
Water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings
Upgradable motor cartridge
Dual-port inlet

Benefits:

Heightened efficiency and an increased flow rate
Enjoy quick and hassle-free cartridge motor changes or capacity upgrades
Reorient discharge in any direction
The common body allows interchangeable motor cartridge replacement in the same or different size
Corrosion-resistant and extended life
Allows single transom intake for dual intake pump application
Can increase or decrease capacity according to the environment and flow needed
Choose the correct intake for the application

Competitive Advantages:

The most efficient and highest flow in the GPH capacity category
Industry-first and only cartridge motor pump with an included harness connection requiring no cutting and splicing of wires
Unmatched versatility for ease of installation

Specifications:

Pump Size: 800 GPH
Capacity Straight (12V): 810 GPH (51 I/min)
Voltage: 12V
Amp: 3.7A
Fuse: 5A
Hose Connection: 3/4 in.
Wire Size: 16 GA, TINNED
Weight: 10.4 oz
Body: ABS
Dura Port: PA66/GF - Nylon
Shaft: 316 Stainless Steel
Shaft Seal: Nitrile Rubber
Motor Cartridge: PC-ABS

Specifications:

Gallons Per Hour: 800 GPH
Inlet Style: Seacock
Volts: 12v
Box Dimensions: 4"H x 6"W x 8"L WT: 1.2 lbs
UPC: 7330717017842

Quick Guide (pdf)

Johnson Pump Aqua O2 Twin Port 800 GPH Aerator Pump - Flex Mount - 12V [10-13650-01]
