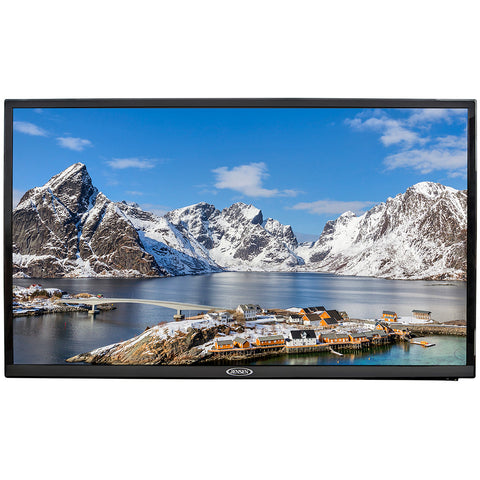

32" Smart TV

JENSEN has designed this lightweight, energy-efficient 12-volt DC television perfect for cabin entertainment. All JENSEN TVs are built for mobile use with conformal-coated circuit boards and reinforced mounting points.

Features:

DC power
White LED illumination
High-performance LCD panel
Integrated HDTV (ATSC) tuner
1366 x 768 resolution
16.7 million colors
ARC/CEC function through HDMI1
VESA 100mm x 100mm mounting pattern
IR remote control included

Inputs/Outputs:

Composite video input (NTSC/PAL compatible)
RF input
USB inputs x 2
HDMI inputs x 2
RJ45 LAN input
Optical output
Headphone output (3.5 mm)

Specifications:

Power System: DC 12 V
Power Consumption: 230mA stand by / 5.05A max
Operating Temperature Range: -4 degrees F to 149 degrees F / -20 degrees C to 65 degrees C
Storage Temperature Range: -22 degrees F to 158 degrees F / -30 degrees C to 70 degrees C
Maximum Relative Humidity: 85%
Overall Dimensions (W x H x D): 28.8 x 17.1 x 3.2 inch (without stand)
Product Weight (unpackaged): 7.7 lbs
Regulatory Certification(s): FCC, ETL, FCC ID

Performance Specifications:

Video / Display System: NTSC/ATSC/PAL
Video Input Signal (Composite): 1Vp-p @ 75 ohms
Audio Output: 2 x 10W @ 4 Ohm

LCD Specifications:

Diagonal Size: 31.5 in.
Resolution: 1366 x 768
Brightness: 200 nit
Contrast Ratio: 3000: 1
Display Format: 16:9
Response Time: 8.5 ms

View Angles:

Top: 89 degrees
Bottom: 89 degrees
Left: 89 degrees
Right: 89 degrees

Specifications:

Brightness (Nits): 200
Resolution (VxH): 1366 x 768
Screen Size: 32"
Voltage - Input Range (Volts): 12
Box Dimensions: 6"H x 20"W x 32"L WT: 12.1 lbs
UPC: 681787024597

Brochure (pdf)

JENSEN 32" Smart TV [JTV3223DCS]
