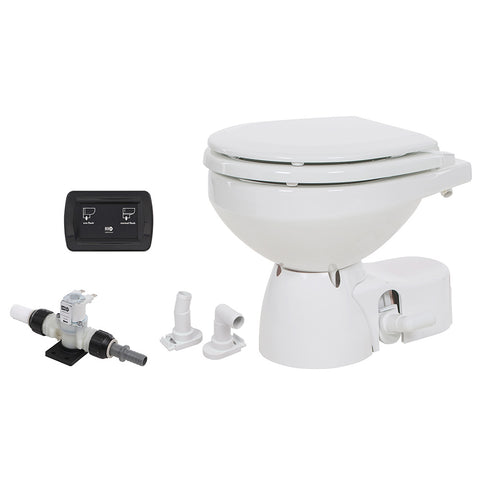

Quiet Flush E2 Fresh Water Toilet Compact Bowl - 12V - Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy to Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy to Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy to Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, users can choose three settings, including a water-saving, eco-friendly cycle.

Installation:

The base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
The discharge pump can be rotated 180 degrees to suit the base orientation and ensure pipework is routed to the rear of the toilet
Straight or 90-degree discharge port for easy install

Quick Release for Easy Servicing:

Quick release system allows for fast and easy removal of discharge pumps and hoses when servicing is necessary
C-Clip design releases pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

Stylish, low-profile design
Touch-sensitive operation
Eco flush, full flush, or empty functions
Only 1-liter (1-quart) per flush using eco mode
Designed for wet room installations
No spill ‘empty’ feature to leave bowl dry when the boat is in motion

Specifications:

Bowl Size: Compact
Seat & Lid: Wood
Slow Close Lid: No
Water: On-board fresh water
Device: Solenoid valve
Flush Control Switch: Touch panel
Voltage DC: 12
Recommended Fuse Size (AMP): 25
Size (H x W x D): 14 x 13.9 x 16.3 inches (355 x 352 x 415 mm)
Weight: 34.2 lbs. (15.5 kg)

Specifications:

Color: White
Operation Method: Electric
Rinse Water: Fresh
Size: Compact Size
Type: Toilet
Volts: 12v
Box Dimensions: 20"H x 24"W x 24"L WT: 43.55 lbs
UPC: 671880640732

Quick Guide (pdf)

Jabsco Quiet Flush E2 Fresh Water Toilet Compact Bowl - 12V - Soft Close Lid [38045-3092RSP]
