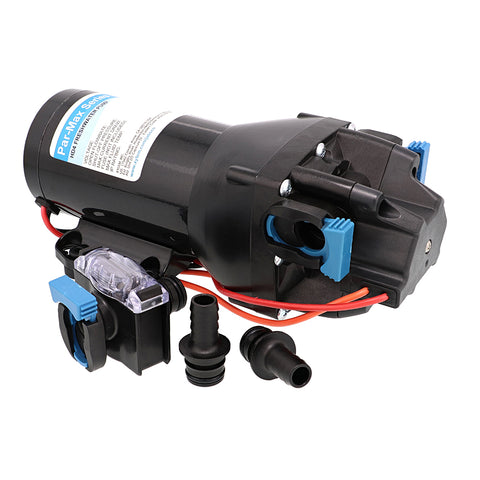

Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

Co-molded diaphragm technology for long life and durability
HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
Efficient and quiet operation
Integrated, sealed pressure switch for on-demand operation
Self-priming allows for installation versatility
Can run dry without damage
Quick connect ports for ease of installation, servicing, and maintenance
Vibration dampening mounting feet
Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

Motor design: Brushed, permanent magnet TENV
Pumphead upper housing material: Glass fiber reinforced polypropylene
Diaphragm: Co-molded TPV
Check valves: EPDM
Max inlet pressure: 30 PSI (2.1 Bar)
Fluid temperature range: 32°F – 140°F (0°C – 60°C)
Dry self-priming capability: 7ft min (2.13m/min)
Certifications: CE, ISO8846, RCM
Ingress Protection: IPX6

Specifications:

Gallons Per Minute: 4 GPM
Max PSI: 60
Volts: 24v
Box Dimensions: 6"H x 6"W x 15"L WT: 7.9 lbs
UPC: 671880841900

Brochure (pdf)

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 60 PSI [Q402J-118S-3A]
