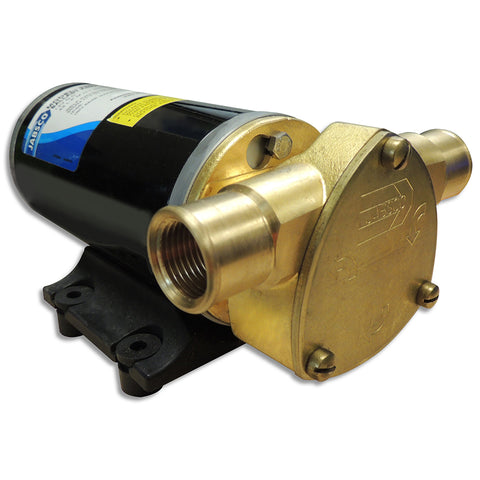

Ballast King Bronze DC Pump with Reversing Switch - 15 GPM

Wakeboard and Ski Boat Ballast Pump

Features:

Flow rate: 15 US gallons/min (57 Litres/min)
Self-priming from dry up to 1.2m (4ft)
Adds approx 125lbs (56kgs) of ballast per minute
Reversible to both fill and empty tanks
Simple design means fewer wearing parts.
ISO 8846 MARINE (Ignition protection).

Applications:

The Ballast King is designed to pump water into Wakeboard Liquid Ballast Tanks and when reversed will also pump water out of them. It has a flow rate of 15 gallons per minute, so it can fill most ballast tanks in about five minutes. It is equipped with a Run-Dry Protection Device (patent pending) to automatically shut-off the pump and protect the impeller from run-dry damage should the pump be mistakenly left on after the Ballast Tank is empty.

Specifications:

Body Materials: Bronze
Impeller: Jabsco Neoprene compound
Seal: Lip Type
Port(s): 1/2" Internal Pipe Threads 1" External Hose Barb
Voltage: 12 (Vdc)
Amp Draw: 19 (amp)
Fuse Size: 25 (amp)
Motor Type: Equipped with Run-Dry Protection Device (Patent Pending) Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball Type Shaft Bearing Reversible
Duty Cycle: 30 Minutes Max
Dimensions: 3 5/8 x 8 x 4 3/4 (inches)

Specifications:

Gallons Per Minute: 15 GPM
Volts: 12v
Box Dimensions: 6"H x 6"W x 12"L WT: 8.6 lbs
UPC: 671880628846

Brochure (pdf)

Jabsco Ballast King Bronze DC Pump w/Reversing Switch - 15 GPM [22610-9507]
