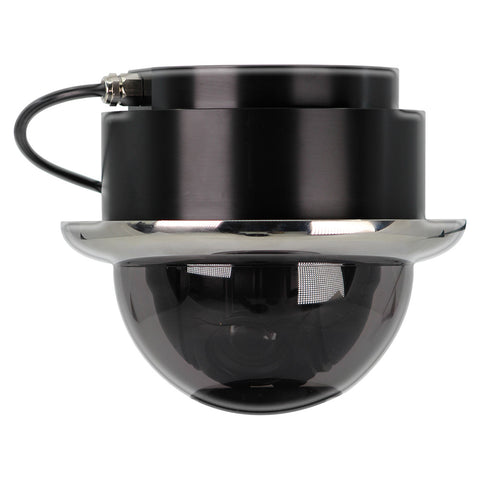

Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Def Ethernet IP - 10x Digital Zoom - 4 in 1 Video Format

The IRISx106 range of multi-format miniature, controllable cameras are the smallest marine PTZ cameras available on the market and provide fast, smooth variable speed control in a variety of formats to suit your requirements.

The IRIS106 features a high-resolution camera sensor that can be switched to output analog (CVBS), AHD, HD-TVI, and HD-CVI video formats depending on your requirement. In analog mode (default) the camera will connect directly to all MFDs that feature a composite video input to provide a crisp, clear video image. Set the camera to HD-TVI and connect via one of our Hybrid recorders or TVIHDMI encoders and you will achieve 1080P High Definition video in real-time compatible with MFDs that feature digital (HDMI / DVI) inputs.

The camera can be controlled by our IRIS595 joystick controller, TE01 rotary controller, or via an Iris HVR interface. Data communication to the camera is achieved via a two-wire RS485 serial data connection.

The camera housing is designed to be as small as possible, simplifying installation and fitting in discreetly with the boat's aesthetic, unlike other large, unsightly marine PTZ cameras. The body of the camera is made from lightweight but tough ABS plastic, and the dome is cast from smoke acrylic. The camera housing is finished off with a marine-grade stainless steel bezel available in high polish (standard). A surface mount bracket is also available for the camera (Part Number: BRK106), facilitating installation directly onto a bulkhead. This is often used when installing in engine rooms where it is not possible to recess mount the device.

Because of its small size and sleek design, the IRIS4106 can be used for deck, companionway, and tender monitoring, engine room monitoring, and as part of your onboard surveillance system. In summary, the 4106 is a very versatile, robust, and controllable marine PTZ camera.

Features:

Marine Grade 316 Stainless Case
The smallest PTZ dome available (86 mm)
IP
Huge compatibility
Easy installation & low power
Stylish high-polished finish
Fast, responsive pan, tilt, and zoom operation

Specifications:

Lens (millimeter): F1.8 / F=4.9mm 49mm
Image Sensor (inch): 1/4” Omnivision OV9712
Image Processing: H.264 Video Codec, Dual Stream 1-30fps adjustable
Effective Pixels: 921,600
Resolution: 1080P/720P
Min Illumination: 0.1 Lux (Colour) / 0.01 Lux (B/W)
Illumination: NA
IR Distance: 10m
Day / Night: Auto / Day / Night
S/N Ratio: >50dB
Optical Zoom: 10x
Digital Zoom: 10x
Wide Dynamic Range: Supported
BLC: Supported
3D DNR: Supported
Mirroring: Horizontal Flip / Vertical Flip
AGC: 0-32
Pan Details: 360-degree Continuous Rotation / Speed 0.5300-degree sec
Tilt Details: 0 90-degree / Speed 0.5300-degree sec
Network: Ethernet RJ45 (10/100 Base-T)
Protocol: TCP/UDP/HTTP/MULTICAST/UPnP/NTP/ RTSP/ONVIF-S 2.4
Power over Ethernet: Supported
P2P: Supported
Smart Phone: Android / iOS
Compatibility: PC-Based Systems. For the latest MFD compatibility please contact IRIS
Max Users: 32 Users
Power: +12VDC / PoE IEEE802.3aF
Power Consumption: 1A Max
Operating Temperature: -35-degrees C + 60-degrees C
Dimensions (millimeter): Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm (For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm
Ingress Protection: IP66
Weight: 1.1Kg
Material: 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing
