Mini Flush Mount Hi-Resolution Through-Hull Camera - CVBS, TVI, CVI, & AHD

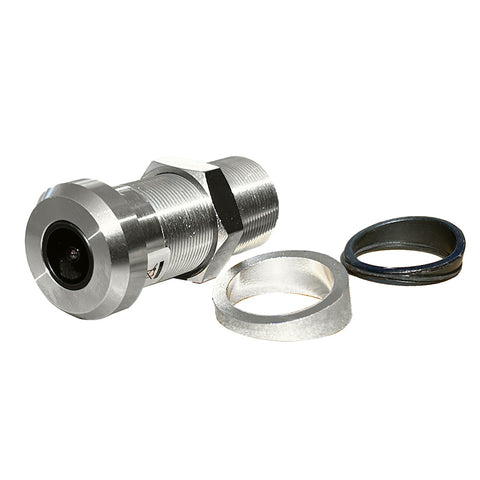

Introducing the world's smallest through hull camera, the IRIS735 machined from corrosion-resistant marine-grade 316L stainless steel and measuring only 28 mm by 59mm long.

The 735 has been designed to sit flush into the hull, superstructure, or transom of your vessel to provide all-around coverage without impacting the tines of your vessel, with a bezel height of only 8.5mm.

The camera module itself features a Sony Starlight sensor to provide excellent performance in low light and can be user-set to output composite (CVBS) or analog Hi-Def (TVI, CVI, AHD) video formats. When set to CVBS, the 735 is compatible with all chart plotter models that support composite video inputs. When set to TVI, the 735 will provide high-definition real-time video, which can be viewed on MFDs via our CMAC systems or fed to a TV via our IRIS995 TVI/HDMI convertor.

The camera has a 140-degree wide-angle field of view, which makes it great to position along the sides and transom of your vessel to provide all-around coverage whilst docking and is also a great solution for sports fishing applications.

If you are looking for a tiny, cost-effective docking camera, a sports fishing camera, or an unobtrusive camera to add to your onboard security setup, the IRIS735 is the perfect solution.

The IRIS735 is also a perfect choice for robust and reliable semi-covert cameras for emergency response and law enforcement vehicles.

Features:

Micro-Compact Form Factor 28MM X 36MM (8MM From Panel)
316L Marine Grade, Corrosion-Proof Stainless Steel Body
4-In-1 Video Format (User Selectable) – CVBS, TVI, CVI, AHD
2.9MM Wide-Angle Lens
Starlight Sensor for Superb Low Light Operation
Compatible With All Chart Plotters Supporting Composite or Analog Video
Compatible With CMAC and CMAC HVR Systems
Set to TVI for HD TV Viewing with the IRIS995 Converter
IP67 Environmental Rating
Extremely Low Power Consumption
Applications:
Perfect for extreme environments
Road traffic surveillance
Monitoring dynamic digital signage
Engine room monitoring
Deck monitoring
Fishing vessel monitoring & surveillance
Emergency vehicle camera applications
Animal / Food processing applications

Specifications:

Lens (millimeter): 2.9mm
Horizontal Field of View: 140-degree HFOV
Sensor (inch): 1/2.8” SONY STARVIS CMOS Sensor
Resolution: CVBS: 1920 x 1080P @ 30fps (NTSC) / 25fps (PAL) / 906H in CVBS mode
Minimum Resolution: 0.001 Lux (F-1.2)
Day & Night Operation: Auto / Colour / Monochrome / External
Video Output Modes: Analogue HD Modes: HD-TVI, HD-CVI, AHD / Analogue: Composite Video (CVBS) NTSC / PAL
Lens/Field of View: 2.9mm Standard (140-degree HFOV)
Shutter Speed: Auto / Manual (1/50(60) - 1/50,000 sec)
Defog: Off / Auto
White Balance: ATW / AWC / INDOOR / OUTDOOR / MANUAL / AWB
Back Light Compensation: OFF / BLC / HSBLC
D-WDR: Off / 08
SENS-UP: Off / x2 x30
DNR: Off / Low / Middle / High
Brightness: 0 - 100
Motion Detection: Off / On
Image Mirror: Off / Mirror / V-Flip / Rotate
Sharpness: 0 10 Steps
Material: 316L Marine Grade, Corrosion Resistant Stainless Steel
Power: DC12V +/-10% / 125mA (1.5W)
Weight: 0.1Kg
Dimensions: 28mm-diameter x 58mm
Environmental / EMC: EN60529 IP67 / EMC EN60945 (TBC)
Operating Temperature: -10-degrees C + 50-degrees C / <90% Humidity

Brochure (pdf)

Iris Mini Flush Mount Hi-Resolution Through-Hull Camera - CVBS, TVI, CVI, AHD [IRIS735]
