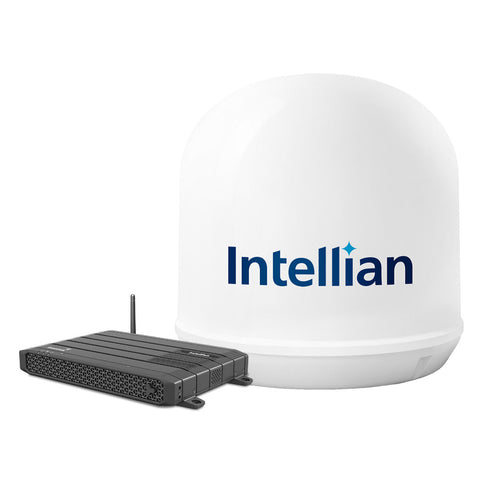

Maritime Terminal for Inmarsat Fleet One Service

Intellian Fleet One is the perfect terminal for Inmarsat’s Fleet One service which enables simultaneous voice and data connectivity up to 150 Kbps. Intellian Fleet One ensures resilient and reliable connectivity at sea.

The Intellian Fleet One is simple and easy to install and use. The lightweight antenna can be carried onboard easily and only a single RF cable ensures a reliable connection.

Features:

Simultaneous voice and data
Built-in firewall for data security
505 emergency calls which in an emergency directs a call straight through to an MRCC
Maritime safety terminal support
Built-in aptusLX intuitive management tool
2 LAN ports with PoE (power over ethernet)

Technical Specifications:

ADU (Above Deck Unit) Dimensions - 291.1 x 294.5 mm / 11.5" x 11.6"
ADU (Above Deck Unit) Weight - 4.9 kg / 10.8 lbs
BDU (Below Deck Unit) Dimensions - 280 x 190 x 41 mm / 11.0″ x 7.5″x 1.45″
BDU (Below Deck Unit) Weight - 1.2 kg / 2.6 lbs
DC Input - 10.8-30 VDC
Power (Max) - 120w
Tx Frequency - 1626.5 MHz - 1675.0 MHz
Rx Frequency - 1518.0 MHz 1559.0 MHz
WiFi - 802.11 b/g

In the Box:

ADU (Above Deck Unit)
BDU (Below Deck Unit)
Coaxial Cable
Quick Installation Guide
Installation Template
DC Power Cable
Ethernet Cable

Brochure (pdf)

Intellian Maritime Terminal f/Inmarsat Fleet One Service [F4-A100-S]
