M510BB GW 21 Black Box VHF with White Command Mic & 3 Command Mic Ports

Icom’s M510BB is perfect for boats that need AIS to receive functionality without taking up precious helm space. The supplied white CommandMic™ provides all the safety and communication functions for commercial and leisure boaters.

Clean Installation for Limited Helm Space

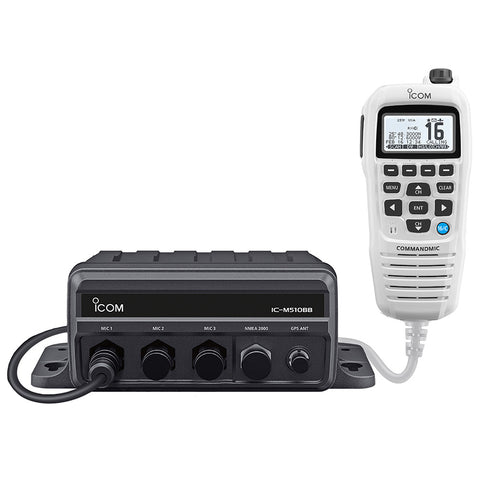

The M510BB consists of a CommandMic™ and a black box RF unit. Use the CommandMic™ for all operations, including DSC. Install the RF unit out-of-sight, placing it up to 60 ft (18.3 m)* away from the CommandMic™.

*Two OPC-1541 cables are required for the 60 ft installation

CommandMic™ Stations

Add up to two additional CommandMic™ microphones for boats requiring two or three comms stations. Extend communication points around the boat including the cockpit, flybridge, and tower. Access the intercom functions for one-to-all or one-to-one communications on the boat.

AIS Receive

The M510BB includes an integrated AIS receiver, perfect for remote station information via the CommandMic™, or integrated into the NMEA 2000® bus to display radar and chart plotter information on an MFD (Multi-Function Display).

DSC Functionality and Remote Control

In addition to the conveniently located DSC button on the back of every CommandMic™, the M510BB introduces a dedicated DSC Remote Control (EN 300 338-8 compatible) terminal, allowing a connection to an external device to centralize emergency communications control.

NMEA200® and NMEA 0183-HS®

The NMEA 2000® network provides plug-and-play data communication to interconnect other marine equipment, such as an MFD (Multi-Function Display). The radio can send AIS, GNSS (GPS) position, DSC call, and radio channels to other equipment.

Class D DSC Functionality

On the back of every CommandMic™ is a conveniently located DSC button. Once triggered, the M510BB transmits a DSC alert signal to nearby vessels with the MMSI* and GPS location of your vessel. *MMSI number must be obtained and programmed for each vessel/radio.

Loud One-Way RX Hailer

The built-in 15W amplifier increases the audio output of an external hailer speaker. The one-way RX hailer function enables you to broadcast radio traffic through the hailer speaker to listen to radio traffic on the deck or tower. You can also hear foghorn patterns from the hailer speaker.

Active Noise Cancelling

The Active Noise cancellation function digitally removes background noise from transmitting and receiving audio to provide clear communications in noisy maritime environments.

Features:

AquaQuake™ function
Anchor watch function

Specifications:

Command Mic Color: White
Remote Stations: Up to 3
Output Power: 25W
GPS: Internal GPS GNSS Receiver, with external GPS antenna connection
NMEA: NMEA 2000®/ NMEA 0183® -HS
Waterproof Rating: IPX7
Frequency Range: Tx - 156.025 157.425 MHz / Rx - 156.050 163.275 MHz / DSC - 156.525 MHz
Usable Channels: USA, INT, CAN, WX channels
Type of Emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*
Power Supply Requirement: 13.8 V DC nominal (11.7 15.9 V DC) (Negative ground)
Current Drain (at 13.8 V DC): TX Max. power - 5.5 A Max. / RX Max. audio - 1.5 A (One CommandMic™) 4.0 A (Two CommandMic™ and RX hailer)
Operating Temperature Range: –20°C-60°C / –4°F-140°F
Antenna Impedance: 50 Ω nominal
Dimensions (W x H x D) (Projections Not Included): RF unit - 216 × 79 × 113 mm; 8.5 × 3.1 × 4.4 in. / CommandMic™ - 67.5 × 144.5 × 37 mm; 2.7 × 5.7 × 1.5 in.
Approximate Weight: RF unit - 890 g; 2 lb. / CommandMic™ - 400 g; 14.1 oz

Transmitter Specifications:

Output Power (at 13.8V DC): 25 W, 1 W (high, low)
Max. Frequency Deviation: +/- 5 kHz
Frequency Tolerance: +/- 0.5 kHz
Spurious Emissions: Less than –70 dBc (high power), Less than –56 dBc (low power)
Residual Modulation: More than 40 dB
Adjacent Channel Power: More than 70 dB

Receiver Specifications:

Sensitivity: FM (at 12dB SINAD): 0.22 μV typical / DSC (at 1% BER): –7 dBμ emf typical
Adjacent Channel Selectivity: FM - More than 70 dB / DSC (1% BER) - More than 73 dBµ emf
Spurious Response: FM - More than 70 dB / DSC (1% BER) - More than 73 dBμ emf
Intermodulation: FM - More than 75 dB / DSC (1% BER) - More than 68 dBµ emf
Hum and Noise: More than 40 dB
Audio Output Power: CommandMic™ - More than 2 W (4 Ω, 10% distortion) / Rx hailer - More than 15 W (4 Ω)

Specifications:

AIS: Yes
Built-In GPS: Yes
Color: White
Hailer: Yes
Intercom Capability: Yes
NMEA 2000: Yes
Remote Mic Capable: Yes
Box Dimensions: 6"H x 9"W x 10"L WT: 5 lbs
UPC: 4909723164487

Brochure (pdf)

Icom M510BB GW 21 Black Box VHF w/White Command Mic 3 Command Mic Ports [M510BB GW 21]
