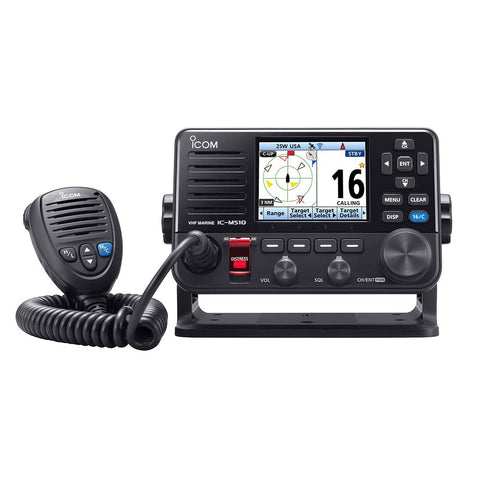

M510 PLUS VHF Marine Radio with AIS

Stay in touch from anywhere in the boat with the M510 Plus fixed mount Marine VHF Radio with AIS.

Icom’s Class D DSC fixed mount VHF Marine Radio with AIS receive capability. The M510 Plus is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate.

Use the RS-M500 app (for iOS™/Android™) to remotely control the M510 through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller in substitute for the COMMANDMIC™.

With its integrated AIS receiver, the IC-M510 Plus can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.

Intercom function between your smart device and the radio is also available.

Features:

Large color display - 3.5" TFT LCD
S-M500 app ( iOS® or Android™) allows you to connect three (3) smart devices to function as a wireless command speaker/microphone
Hand microphone with AquaQuake™
Front and back microphone connection ports
Optional voice scrambler
External speaker connection
Supports 4-digit channels
Option to connect external GPS

Technical Specifications:

Output Power - 25W
Frequency Range - Transmit - 156.025 to 157.425 MHz
Frequency Range - Receive - 156.050 to 163.275 MHz
Waterproof Rating - IP68
GPS - Built-in
WLAN - Built-in
Connectivity - NMEA 0183 (NMEA 2000™ with the addition of the CT-M500)

Features:

Hand microphone with AquaQuake™
Front and back microphone connection ports
Optional voice scrambler
External speaker connection
Supports 4-digit channels
Option to connect external GPS

In the Box:

M510 Plus VHF radio with AIS
Speaker microphone (HM-250RB)
DC Power cable
Microphone hanger
Mounting bracket kit
Instruction manual

*Sold as you Individual

Specifications:

AIS: Yes
Built-In GPS: Yes
Color: Black
Hailer: Optional
Intercom Capability: Yes
Listen-Back: Yes
NMEA 2000: Optional
Remote Mic Capable: Yes
Scrambler Capable: Yes
Box Dimensions: 7"H x 9"W x 11"L WT: 4.2 lbs
UPC: 731797039866

Owner's Manual (pdf)
Brochure (pdf)

Icom IC-M510 PLUS VHF Marine Radio w/AIS [M510 PLUS 21 USA]
