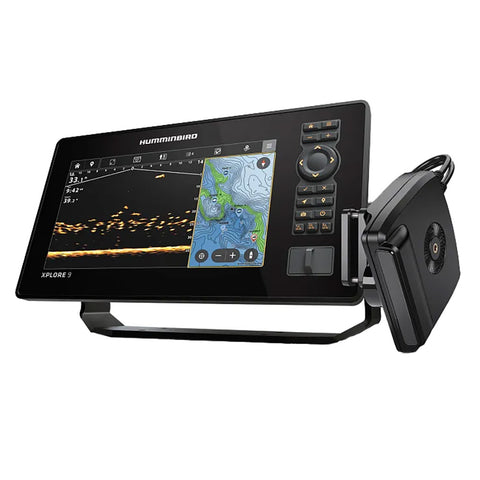

Ice Xplore 9" Mega Live 2 Bundle

Take your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle, delivering next-gen clarity, helping anglers catch more fish, and enjoying every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are. Note: third-party ice shuttle and pole required for setup.

Next-Gen Clarity: XPLORE Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it easier to find and stay on fish.
Designed for Ice: Includes ice-specific cable lengths, inline fuses, and connectors for hassle-free setup and reliability in cold conditions.
Ice Mode: Streamlined features and functionality for a custom ice experience. Flip back to Open Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat.
Real-Time MEGA Live 2 Sonar: Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom.
Lakemaster Mapping Included: Ice Xplore fish finders come with LakeMaster® mapping with features like SmartStrike® to keep you on the fish.
Custom Bundle: Pre-matched components streamline compatibility and installation, ready for your choice of ice shuttle and pole for full on-ice functionality.
Warranty: Ice XPLORE carries a 2-year limited warranty, while MEGA Live 2 is covered by a 1-year Warranty.
Included Components: XPLORE fish finder; 18” Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; XPLORE Map Card, MEGA Live 2 Transducer; Compact Pole-mount; 5' Ethernet Cable, 4' Power cable with spade connectors and inline fuse

Specifications:

Transducer Included: MEGA Live Imaging
Compatible With: Minn Kota US2 Sonar, Minn Kota i-Pilot Link, Radar, One-Boat Network, MEGA Live 2
Memory Card Slot: Dual Micro SD
Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
Live Sonar-Coverage: 20 degrees x 120 degrees
Interface: Touch Screen, Keypad Control
360 Imaging Compatibility: Yes
MEGA Live Compatibility: Yes
Humminbird Basemap: Included
LakeMaster Compatibility: Yes
CoastMaster Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum+ Compatibility: Yes
Platinum Compatibility: Yes
Minn Kota Advanced GPS Navigation Compatibility: Yes
Minn Kota i-Pilot Link Compatibility: Yes
Minn Kota Talon Shallow Water Anchor Compatibility: Yes
Radar Compatibility: Yes
5-Port Ethernet Switch Compatibility: Yes
AIS Compatibility: Optional
Autopilot Compatibility: No
Heading Sensor GPS Compatibility: No
Heading Sensor GPS (NMEA 2000) Compatibility: Yes
NMEA2000: Included
Target Separation: 2.5 in
Upgradable Software: Yes
View Preset Keys: Yes
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 24-Bit
Display Type: Color TFT
Speed: Included
Temperature: Built In
Temperature Alarm: Yes
Temperature Graph: Yes
HDMI Compatible: No

Specifications:

Cartography Brand: Humminbird/Navionics
Included Transducer: XI-14-HW
Screen Size: 9"
Touchscreen: Yes
Transducer Included: Yes
Box Dimensions: 11"H x 11"W x 16"L WT: 13 lbs
UPC: 082324061424

Quick Guide (pdf)
Owner's Manual (pdf)
