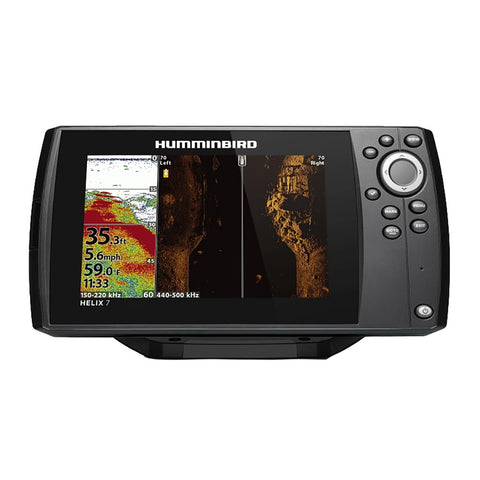

HELIX 7 GPS CHIRP SI G4

The HELIX 7 SI GPS G4 fish finder features CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.

Features:

Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any condition.
CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.
Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
1-Year Limited Warranty

Specifications:

Display Size - Diagonal: 7"
Display Pixel Matrix: 1024H x 600V
Transducer Included: XNT 9 HW SI T
Compatible With: Minn Kota US2 Sonar, AIS, AutoPilot
Features: Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping
Memory Card Slot: Single Micro SD
Sonar-Standard: Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging
Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
Live Sonar-Coverage: 20 degrees x 120 degrees
CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported: 50/83/200/455 kHz
Depth-Sonar: 3,500' (optional 50 kHz), 1,200 ft (standard transducer)
CHIRP - Imaging Frequencies Supported: 455 kHz (420-520 kHz)
Depth-Down Imaging: 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side): 800 ft (455 kHz)
Interface: Keypad Control
Power Draw: 800 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Included
Sonar Recording: Included
Mount-Standard: Gimbal
Mount-Standard Size: 10.54 in W x 5.8 in H x 3.68 in D
Mount-Optional: In-Dash Mounting Kit
Mount-Optional Size: 10.54 in W x 5.44 in H x 1.13 in D
Transducer Mount Location: Transom
GPS Chartplotting: Included
GPS Receiver: Internal
GPS Trackplotting: Included
Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
Humminbird Basemap: Included
LakeMaster Compatibility: Yes
CoastMaster Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum+ Compatibility: Yes
Platinum Compatibility: Yes
AIS Compatibility: Optional
Autopilot Compatibility: Yes
Heading Sensor GPS Compatibility: Yes
Target Separation: 2.5"
Interference Rejection: 6 Modes
Noise Rejection: 10 Steps
Upgradable Software: Yes
X-Press Menu System: Yes
Custom Digital Readout: Yes
Display Colors Grayscale: 16-Bit
Display Type: Color TFT
Speed: Included
Temperature: Built In
Temperature Alarm: Yes
Temperature Graph: Yes
Warranty: One-Year Warranty

Specifications:

Cartography Brand: Humminbird/Navionics
Included Transducer: XNT-9-HW-SI-T
Screen Size: 7"
Touchscreen: No
Transducer Included: Yes
Box Dimensions: 5"H x 14"W x 17"L WT: 5.4 lbs
UPC: 082324058288

Owner's Manual (pdf)

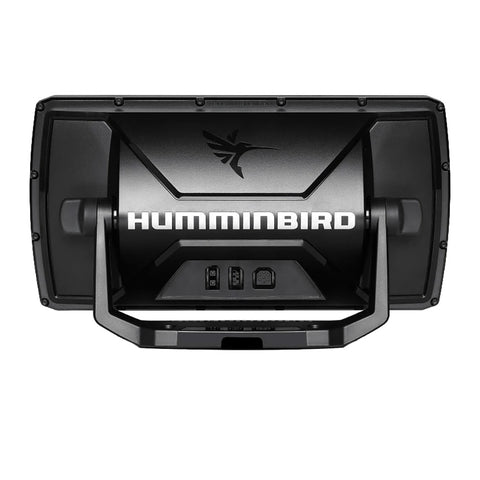

Humminbird HELIX 7 GPS CHIRP SI G4 [411920-1]
