HELIX 5 DI G2 Fishfinder

The HELIX 5 DI G2 with an improved user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.

CHIRP Frequencies (Out of Box Transducer)
455 kHz: 420-520 kHz
800 kHz: 790-850 kHz

Maximum Depth: 600 feet

DOWN IMAGING SONAR

Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.

SWITCHFIRE

SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.

DUALBEAM PLUS SONAR

Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.

UPGRADEABLE SOFTWARE

Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.

Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Included Transducer: XNT-9-DI-T
Screen Size: 5"
Transducer Type: Transom Mount
Transducer Included: Yes
Box Dimensions: 5"H x 10"W x 16"L WT: 4 lbs
UPC: 082324049019

Quick Guide (pdf)
Owner's Manual (pdf)

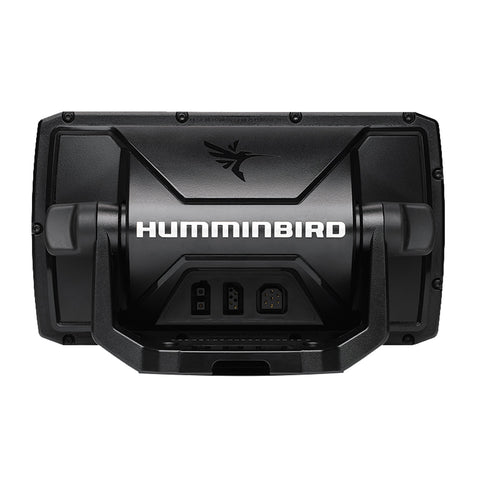

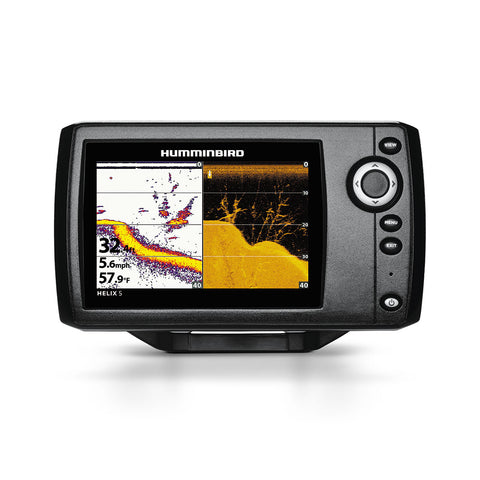

Humminbird HELIX 5 DI G2 Fishfinder [410200-1]
