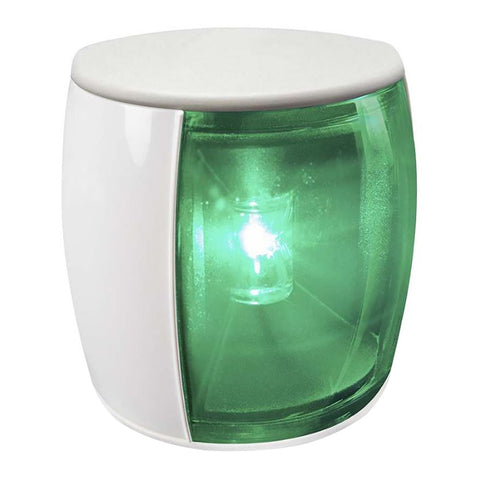

NaviLED PRO Starboard Navigation Lamp - White - 3NM

This NaviLED Starboard lamp covers vessel requirements over 50m.

Hella Marine takes navigation lighting very seriously. Often a grudge fitment to comply with the rules, this light is essential when navigating at night.

All Hella marine products are designed with components that suppress possible interference, both emissions and susceptibility to emissions, to the limits prescribed in international standards. This prevents interference with radio, communication, navigation, and other electrical equipment on board.

Hella marine lamps are rated IP67 and completely sealed. UV from the sun, corrosive salt air, and constant vibration: these lamps are impervious to the marine environment.

With ultra-low power consumption from the highly efficient LED light source, this lamp also provides exacting light intensity across a wide range of voltage inputs, from 9V DC to 32V DC.

Made in New Zealand and fully supported by Hella Marine's 5-year warranty for peace of mind.

Specifications:

Lamp Type: Starboard Navigation
Dimensions (W x H): 3.43 x 3.54 inches (87mm x 90mm)
Lamp Color: White
Material Description: Hi-impact-resistant acrylic lens
Minimum Visible Distance: 3 nautical miles (powerboats only)
Cable: Pre-wired with 2.5m of tinned marine cable
Operating Voltage: Multivolt 9-33V DC for 12/24V applications
Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -500 volts
Power Consumption: <2W (0.17A@12V / 0.09A@ 24V DC)
Degree of Protection: IP67 (completely sealed)
Weight: 250g (including cable)
Approvals: IMO Col Reg 72, RINA, USCG, ABYC C-5, RCM, Maritime NZ

Specifications:

Housing: White
Lens Color: Green
Visible Range (Miles): 3nm
Voltage - Input Range (Volts): 9-33v
Box Dimensions: 4"H x 4"W x 6"L WT: 0.8 lbs
UPC: 9416325253365

Owner's Manual (pdf)

Hella Marine NaviLED PRO Starboard Navigation Lamp - White - 3NM [017461111]
