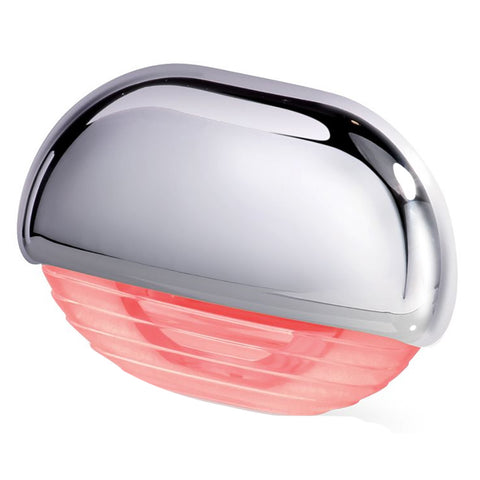

Easy Fit Step Lamp - Red with Chrome Cap

Attractive and timeless LED courtesy lighting for a wide variety of interior and exterior lighting applications.

Light is radiated downward at an angle of 30°. This lamp is ideal for illuminating onboard areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs, and switches without shining in the eyes.

Features:

The lamp is pre-wired with 100mm of marine cable and supplied with stainless steel screws
The optic appears clear until illuminated
Multivolt electronics ensure constant light output in 12V or 24V DC systems
Easy Fit Gen 2 series lamps are completely sealed, shock and vibration-resistant, and represent reliable 'fit and forget' technology

Specifications:

Lens Material: UV-resistant enhanced impact acrylic
Cap Material: Chrome-plated plastic
Light Color: Red
Cable: Pre-wired with 100mm of twin-core marine cable
Operating Voltage: Multivolt for optimum brightness in 12 and 24-volt systems
Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )
Degree of Protection: IP 67 - Completely Sealed
Weight: Stainless Cap - 30g (including cable). Plastic Cap - 15g (including cable)
Approvals: CE, RCM

Specifications:

Bulb Type: LED
Housing: Chrome
LED Color: Red
Voltage - Input Range (Volts): 12/24v
Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs
UPC: 9416325238331

Quick Guide (pdf)

Hella Marine Easy Fit Step Lamp - Red w/Chrome Cap [958126201]
