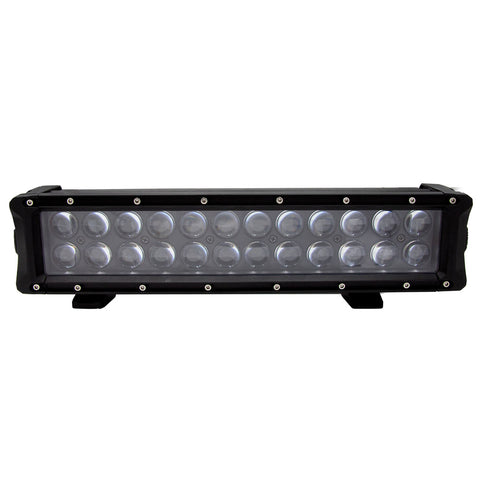

Infinite Series 14" RGB Backlite Dualrow Bar - 24 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise's popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

Input Voltage: 10-30V DC
Wattage: 36W
Raw Lumens: 4560
LUX @ 10M: 660
Color Temperature: 6000K
Beam Pattern: Spot(8°)

Construction:

Housing Material: Die–cast Aluminum Housing
Housing Color: Black
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Hole Dimensions: Brackets turned inward - 13.25"
Brackets turned outward - 15.5"
Mounting Bolt Drill - .25"
Height of Light Bar Itself: 4.8"
Depth of Light Bar Itself: 3.50"
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

Operation:

Operating Temperature: -40°C to +60°C
Current Consumption: 2.6 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity

Specifications:

Beam Pattern: Spot
Housing: Black
Length (Inches): 14"
Voltage - Input Range (Volts): 12/24v
Box Dimensions: 6"H x 6"W x 19"L WT: 5.45 lbs
UPC: 086429368426

HEISE Infinite Series 14" RGB Backlite Dualrow Bar - 24 LED [HE-INFIN14]
