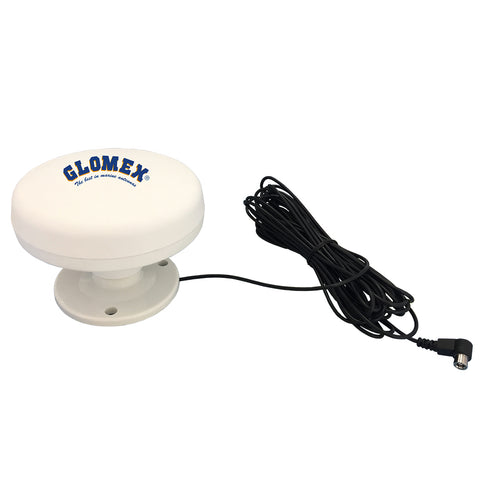

Satellite Radio Antenna with Mounting Kit

RS100 is a very high performance marine satellite radio antenna, rugged, small and very easy to install thanks to the integrated magnetic mount and the supplied 7M (23’)coax cable with SMB termination. Using the latest Satellite Radio technology, exceeds the most recent specifications. RS100 is a low-profile antenna is designed for satellite radios.

Features:

High performance antenna
Designed for satellite radios
Extended range
Low-profile design
Supplied with 7M (23’) coax cable & mounting kit
Anti-yellowing materials
Corrosion resistant antenna

Specifications:

Frequency Range: 2320 - 2345 MHz [2.3 GHz]
Gain Average: 24 dB
Impedance: 50 ohm
Polarization: LHCP [Left Hand Circular Polarization]
SWR: ≤ 2.0:1
Max Input Power: 5V / 150 mA
DC Ground: No
Antenna Length: 2” (50mm)
Antenna Diameter: 3,7” (95mm)
Antenna Weight: 7oz (200 gr)
Termination: SMB, 23’ (7M) cable

Supplied Accessories:

23’ (7M) coax cable with SMB connector
Reinforced nylon mount

Specifications:

Dome Weight (lbs): 7oz
Voltage - Input Range (Volts): 5
Box Dimensions: 3"H x 6"W x 11"L WT: 0.7 lbs
UPC: 8051566305001

Glomex Satellite Radio Antenna w/Mounting Kit [RS100]
