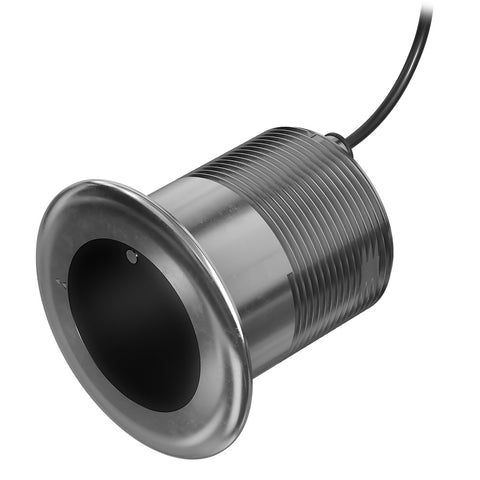

GT17M-THF SS Mid Band Chirp Transducer - 12° - 1kW - 8-Pin

Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Features:

See maximum depth performance to 2,400’ in freshwater
Access CHIRP sonar frequency range from 80–165 kHz
Search with beamwidths of 9–18 degrees
Count on fast-response water temperature sensing
The thru-hull design offers flush installation with a 12-degree tilt
Auto-ID enables simple plug-and-play operation

Midband Chirp Traditional Sonar

This 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.

Fits Various Hull Types

Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.

In the Box:

GT17M-THF transducer
Jam nut
Spacer
2 washers
2 set screws
Thread isolator
Hull isolator
Documentation

Specifications:

Transducer Frequency: Medium band CHIRP (80-165 kHz)
Transducer Power: 1 kW
Transducer Beamwidth: 9°-18°
Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater
RapidReturn™ Sonar Compatible: Yes
Transducer Cable Length: 50 ft
Transducer Depth/Speed/Temperature: Depth, temperature
Transducer Number of PINs: 8-pin
Transducer Supported Deadrise/Transom Angles: 12° supports hull deadrise angles from 8° to 15°
Housing Material: Stainless steel

Specifications:

Cable Length (Feet): 50'
Chirp: Medium
Imagining: Standard
Mounting Style: Thru-Hull
Pins: 8
Speed Included: No
Temperature: Yes
Box Dimensions: 7"H x 8"W x 13"L WT: 10.95 lbs
UPC: 753759338466

Garmin GT17M-THF SS Mid Band Chirp Transducer - 12 - 1kW - 8-Pin [010-02930-01]
