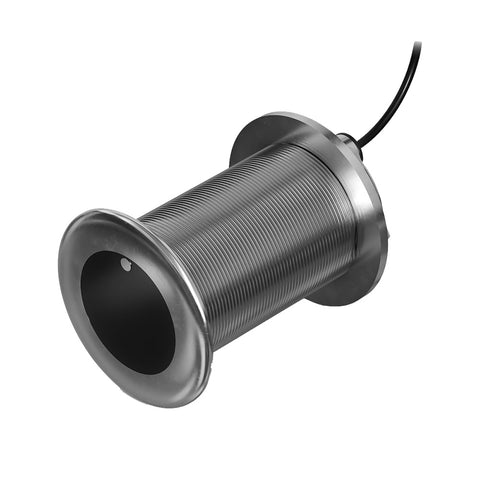

GT15M-THF 20 Degree 600W SS Thru-Hull Transducer

Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Midband Chirp Traditional Sonar

This 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200’ in saltwater and 1,900’ in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to configure itself to the transducer being used automatically.

Fits Various Hull Types

Configurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block.

Specifications:

Transducer Frequency: Medium band chirp (85-165 Khz)
Transducer Power: 600 W
Transducer Beam Width: 24-16 degrees
Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater
Transducer Cable Length: 50 ft.
Transducer Depth/Speed/Temperature: Depth, temperature
Transducer Number of Pins: 8-Pin
Transducer Supported Deadrise/Transom Angles: 20 degrees support hull deadrise angles from 16 degrees to 24 degrees
Housing Material: Stainless steel

In the Box:

GT15M-THF transducer
Jam nut
Washer
Thread isolator
Hull isolator
Documentation

Specifications:

Cable Length (Feet): 50'
Mounting Style: Thru-Hull
Temperature: Yes
Box Dimensions: 7"H x 7"W x 11"L WT: 7.2 lbs
UPC: 753759319946

Garmin GT15M-THF 20 Degree 600W SS Thru-Hull Transducer [010-02868-02]
