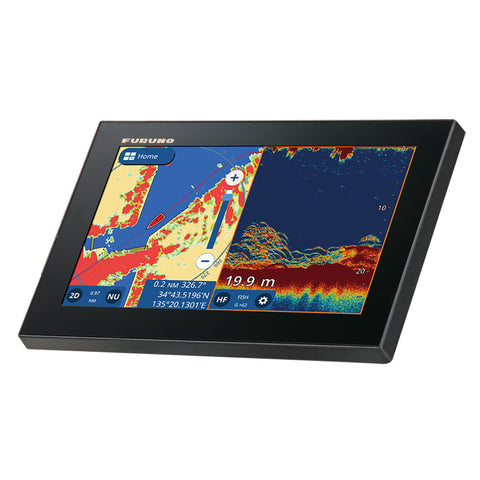

GP1971F 9" GPS/Chartplotter/Fishfinder 50/200, 600W, 1kW, Single Channel & CHIRP

Powerful technology in a compact 9" Chartplotter with a built-in CHIRP Fishfinder!

Multi-Touch Interface - Convenient and intuitive slide-out menus

The GP-1971F smart interface, inherited from the NavNet TZtouch2, features slide-out menus containing all the tools and data you need to be in total control.

Display modes customization

Customize your display modes and create the perfect combination to fit your individual needs.

Finger Gestures

With the Finger Gestures (one or two fingers) you can either zoom-in, zoom-out, double tap to take a screenshot or even jump to a full-screen mode when using Split-screen display mode.

Detailed Chart with C-MAP 4D compatibility

By using the incredibly rich C-MAP 4D charts, the GP-1871F/1971F delivers highly precise data that features plenty of useful information, such as relief vectors, tidal streams and marine plans, considerably enhancing your navigational awareness.

Autopilot controls

Via the CAN bus network interface, The NAVpilot-300 and NAVpilot-711C can be connected to the GP-1871F and GP-1971F and controlled directly from the Chart Plotter.

Unmatched detail with TruEcho CHIRP™

The high level of detail available with TruEcho CHIRP™ technology helps to distinguish fish schools, even when close to the sea bed.

Fish can be observed with a very high resolution and are displayed in a distinct boomerang shape. The clear presentation marks individual game fish and bait fish, even when tightly schooled together.

ACCU-FISH™ and Bottom Discrimination with RezBoost™

With FURUNO’s RezBoost™ data processing technology, fish schools and echoes are shown with high resolution while you can assess fish size and bottom composition thanks to ACCU-FISH™ and Bottom Discrimination functions.

Additionnaly, ACCU-FISH™ icons and colors can be freely customized according to the size and depth of the targeted fish.

DRS4W 1st Watch Wireless Radar

The GP-1871F and GP-1971F are connectable to the 1st Watch Wireless Radar (Output Power 4 kW) giving your Chart Plotter a major upgrade in accuracy and safety.

Easy screenshot and MicroSD card

Tap the display with two fingers to capture a screenshot that will be saved directly to your microSD card.

Features:

Consistent "all-glass" design and GUI (similar to TZtouch2), with multi touch, slide out menus and edge-swipe gesture controls
9" Wide-aspect, bright (1000 cd), multi touch LCD (800 x 480 Resolution) with anti-fingerprint and anti-reflective coating
Built-In 1kW TruEcho CHIRP and Conventional Fish Finder with Accu-Fish, RezBoost and Bottom Discrimination
Built-In 72 channel GPS WAAS, EGNOS, MSAS Core and antenna
Built-In wireless for use with DRS4W Radar & C-MAP C-Weather downloads
Radar overlay capability with DRS4W (optional heading input required)
Compatible with C-MAP 4D MicroSD Worldwide Cartographic Database
C-MAP C-Weather for Wind, Wave, Weather, Humidity and Temperature
Autopilot control when integrated w/NavPilot 711C or NavPilot 300
Certified NMEA2000/NMEA0183 Interface (full NMEA0183 output with SW update)
Accepts AIS data in both NMEA0183 & NMEA2000 formats

Built-In simulation: Internal demo slideshow and simulation mode

Specifications:

Cartography Brand: Navionics/C-Map
Screen Size: 9"
Touchscreen: Yes
Transducer Included: No
Box Dimensions: 10"H x 12"W x 15"L WT: 6.35 lbs
UPC: 611679364555

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.

Furuno GP1971F 9" GPS/Chartplotter/Fishfinder 50/200, 600W, 1kW, Single Channel CHIRP [GP1971F]
