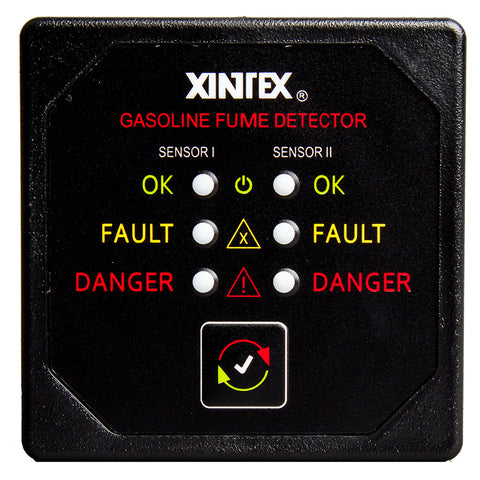

Gasoline Fume Detector with Dual Channel - 12/24V

The Dual Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.

Complete system with easy installation and precise monitoring.

Features:

Simple Installation
Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
Monitors two (2) separate areas simultaneously

Technical Specifications:

Operating Temperature: -40° to 185°F (-40° to 85°C)
Current Draw Nominal - 55mA
Current Draw Maximum - 150mA
Operating Voltage - 9 to 30V DC
Alarm Horn - 68 dB
Display Style - Square with Black Bezel
Display Dimensions - 2-5/8" x 2-5/8" (6.7 x 6.7 cm)
Cutout Dimension - 2-1/8" (5.4 cm) round hole

In the Box:

Fume Detector
Fuel sensors x two (2)
20' Extension Cable x two (2)
Instruction manual

*Sold as an Individual

Specifications:

Blower Relay: No
Fume Type: Gasoline
Generator Shutdown: No
Sensors Included: 2
Voltage - Input Range (Volts): 9 to 30
Box Dimensions: 4"H x 4"W x 8"L WT: 1.5 lbs
UPC: 619749202554

Owner's Manual (pdf)
Brochure (pdf)

Fireboy-Xintex Gasoline Fume Detector w/Dual Channel - 12/24V [G-2B-R]
