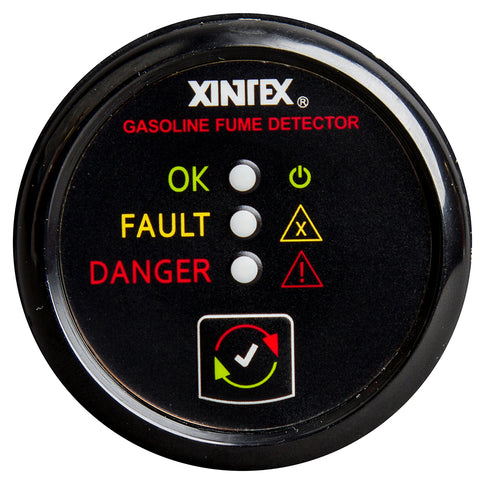

Gasoline Fume Detector - Black Bezel - 12/24V

The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.

Features:

Simple Installation
Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
Monitors one (1) single area

Technical Specifications:

Operating Temperature: -40° to 185°F (-40° to 85°C)
Current Draw Nominal - 55mA
Current Draw Maximum - 95mA
Operating Voltage - 9 to 30V DC
Alarm Horn - 68 dB
Display Style - Round with Black Bezel
Display Dimensions - 2-3/16" (5.6 cm) round
Cutout Dimension - 2-1/16" (5.2 cm) round hole

In the Box:

Fume Detector
Fuel sensors x one (1)
20' Extension Cable x one (1)
Instruction manual

*Sold as an Individual

Specifications:

Blower Relay: No
Fume Type: Gasoline
Generator Shutdown: No
Sensors Included: 1
Voltage - Input Range (Volts): 9 to 30
Box Dimensions: 4"H x 4"W x 8"L WT: 1 lbs
UPC: 619749202516

Owner's Manual (pdf)
Brochure (pdf)

Fireboy-Xintex Gasoline Fume Detector - Black Bezel - 12/24V [G-1B-R]
