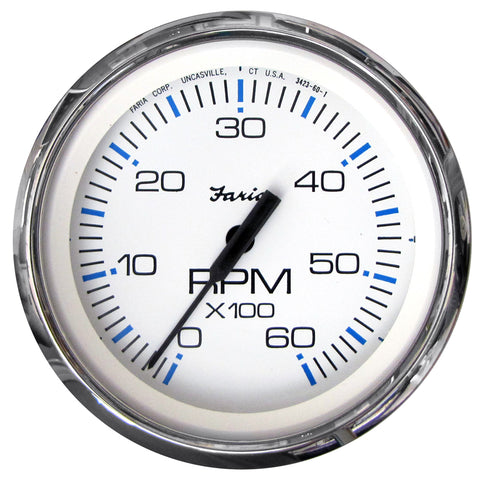

Chesapeake White SS 4" Tachometer - 6000 RPM (Gas) (Inboard & I/O)

Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.

Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.

By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.

4" - Hole size: 3.375" (85mm)

Specifications:

Anti-scratch glass lens
Plastic Cases for corrosion resistance and long life
12 VDC negative ground
Can be adapted for 24 VDC systems

Factory P/N TC9796

*Sold as an Individual

**Gauge Cover not Included

Specifications:

Gauge Type: Tachometer
Series: Chesapeake White
Voltage - Input Range (Volts): 12/24 V
Gauge Size: 4"
Box Set: No
Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs
UPC: 759266338074

Quick Guide (pdf)

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.

Faria Chesapeake White SS 4" Tachometer - 6000 RPM (Gas) (Inboard I/O) [33807]
