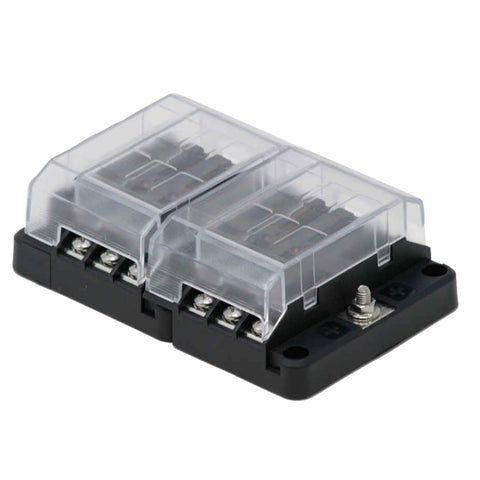

RT Fuse Block 12 Position with LED Indication

This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.

Applications:

Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

Maximum Current (Entire Block) Amps: 100
Maximum Current (Per Circuit) Amps: 30
Max Output Wire Size: #10 AWG
Voltage Range VDC: 12-24
Number of Fuse Positions: 12
Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Specifications:

Amperage: 100a
Fuse Type: ATO/ATC/ATF
Type: Fuse Blocks
Box Dimensions: 3"H x 4"W x 8"L WT: 0.9 lbs
UPC: 850035199749

Quick Guide (pdf)

Egis RT Fuse Block 12 Position w/LED Indication [8029]
