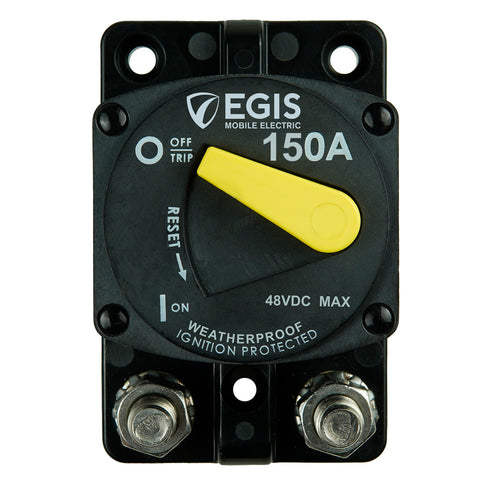

150A Surface Mount 87 Series Circuit Breaker

This 150A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
High Electrical/Manual Switching Endurance delivers 2,000 cycles at full current
High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
4-Year Warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

Continuous Current Amps: 150
Max Voltage: 48
Cycling Endurance: 2,000
Interrupt Current @14 VDC (Amps): 5,000
Interrupt Current @28 VDC (Amps): 3,000
Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Reinforced Mounting

Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Amperage: 150a
Box Dimensions: 3"H x 3"W x 4"L WT: 0.6 lbs
UPC: 850035199374

Quick Guide (pdf)

Egis 150A Surface Mount 87 Series Circuit Breaker [4704-150]
