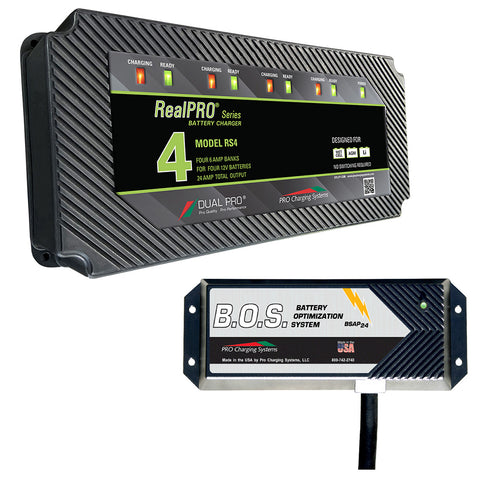

RS4 4 Bank Battery Charger with 2 Bank B.O.S.

This kit includes Dual Pro’s B.O.S. Battery Optimization System - 12V - 2-Bank (PN: BOS12V2) and Dual Pro’s RealPRO Series Battery Charger - 24A - 4-Bank (PN: RS4).

B.O.S. Battery Optimization System - 12V - 2-Bank

B.O.S. actively shuttles energy between batteries to keep “the pack” balanced, increasing battery strength and longevity.

Batteries in a pack will become “out of balance” and the pack is only as good as its “weakest link”. In watercraft applications, this is further compounded when the trolling motor battery is used for peripherals and/or to assist the cranking battery.

B.O.S. actively shuttles energy as needed between batteries wired in series to ensure equal voltage before, during, and after charging.

B.O.S. keeps packs balanced, enabling maximum performance, and quadruple run time on the water.

Premature battery failure due to an unbalanced pack has been, unfortunately, accepted as the ‘norm’ for decades. The B.O.S. answers this call with a BSAP-24 algorithm that can accurately predict and select the battery that needs additional energy to match the other batteries within the pack. This simultaneously and successfully extends the life of each battery in the pack, as well as increasing run times.

Features:

Available in 6V, 8V, and 12V configuration
Up to six batteries in a series
Battery Selection and Prediction (BSAP-24) algorithm
Less than 1mA sleep mode
Transfer rate up to 7.5A
Self-powered
Any type of battery chemistry

Used in Any Application Where Batteries Are in Series:

Marine
Golf
Industrial
Aerial Equipment
Solar Power
Electrical Vehicles
Communications
Defense/Military

RealPRO Series Battery Charger - 24A - 4-Bank

RealPro Series battery chargers (formerly Recreation Series) are an affordable, reliable, and safe battery charging system designed for everyday use. The system is engineered for users who need a charging system on an occasional basis and may not want or need the capabilities of a heavier-duty and higher-amperage product.

It is designed for use in many types of applications, including bass boats, runabouts, pontoon boats, other watercraft, automobiles, ATVs, golf carts, and other similar uses. The system delivers sophisticated capabilities and superior value to customers.

Battery Charging Systems Designed for Everyday Applications:

Affordable, reliable, and safe
Unmatched performance, reliability, safety, and quality
TROUBLE FREE – Just Plug It In and Forget It!
Join Over 750,000 satisfied customers!
Wide variety of applications
Universal input (100-240 VAC 50/60HZ)

Features:

4 bank battery charger
Approved for wet cell and absorbed glass mat (AGM) batteries
Designed for use in fresh and saltwater
Dependable, rugged construction, and waterproof
Independent outputs and fully automatic
Battery maintenance mode
Two-year warranty
DC charge cables = 5ft and AC power cord = 3ft
Approved and meets ISO 8846 marine standards
LED lights indicate "Each Battery’s" state of charge
Reverse polarity protection and no installation restrictions
Ignition protected (US Coast Guard 33 CFR 183.410)
FCC 15 Parts A and B Interference Compliant

May Be Used in Many Types of Sporting applications, Including:

Bass Boats
Runabouts
Pontoons
Automobiles
ATVs
Golf Carts

Specifications:

Charging Banks: 4
Portable: No
Box Dimensions: 3"H x 6"W x 9"L WT: 11.55 lbs

Quick Guide (pdf)
Brochure (pdf)

Dual Pro RS4 4 Bank Battery Charger w/2 Bank B.O.S. [RS4/BOS12V2]
