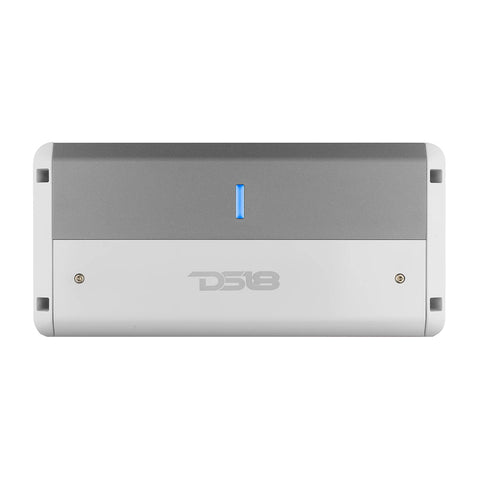

NXL-M4 Full Range 4 Channel IPX5 Marine Grade Amplifier - 150 x 4W @ 4-Ohm

Designed for intense sessions that keep the party boat rocking all night long; the NXL-M4 is DS18’s high-quality, powerful amplifier for the wave runner looking for a big sound with a small footprint!

As a Class D Digital amplifier, the NXL-M4 uses a direct insert speaker and power terminals significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but, what it lacks in size it makes up for in power.

The NXL-M4 handles 150W x 4CH @ 4 Ohms; 230W x 4CH @ 2 Ohms; and 440W x 2CH @ 4 Ohms Bridge of RMS Power and 1800W Peak Power.

Get clean, well-defined sound for with enough features (Fully Variable Bass Boost, Low Pass Filter, and High Pass Filter) to tune your music perfectly for optimal audio enjoyment! This full-range amplifier handles all speakers insanely well and has the features to make sure they play the way you want them to!

This amplifier is tough enough to stand up to the worst the waves throw at you! All controls are guarded by high-strength front covers that guarantee impenetrable defense against the elements; coated 4-layer PCB helps prevent corrosion caused by salt water; and Voltage, Thermal, and Short Circuit Protection for easy monitoring of your power levels.

Order the NXL-M4 for insane power out on the water!

Features:

Hardware resistant to corrosion and UV Protection
Coated 4 Layers PCB to prevent corrosion
IPX5 Water Resistance Grade
High Level Input For Radio Use
Front cover to keep the controls safe to the elements
LED Clip Indicator to easier adjustment
Stable and Reliable Class D Circuit Design
Sound Quality Verification Using AP Instruments
Direct Insert Power and Speaker Terminals
Short Circuit, Thermal, and Voltage Protection

Technical Specifications:

Number of Channels - 4
Frequency Response - 20Hz - 20KHz
2 Ohm RMS Power Per Channel - 4 x 230W
4 Ohm RMS Power Per Channel - 4 x 150W
4 Ohm RMS Power Bridge Channel - 2 x 440W
Signal-to-Noise Ratio - >90dB
Product Dimensions: (L x W x H) - 9.6" x 4.5" x 1.7"

*Sold as an Individual

Specifications:

Bridgeable: Yes
Channels - Available: 4
Waterproof Rating: Splashproof
Watts: 4 x 150w
Box Dimensions: 3"H x 6"W x 12"L WT: 3.7 lbs
UPC: 810097261464

Owner's Manual (pdf)
