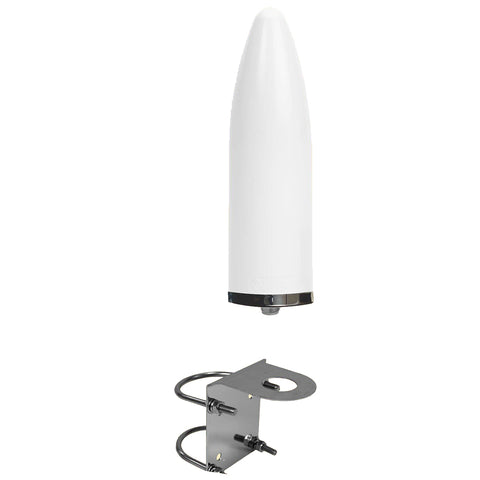

Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni with Bracket

Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.

9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.

Available in 4 stainless steel mounting options: L-Bracket, 1" x 14 Threads, Deck Mount, and Raised Deck Mount

REQUIRED (NOT INCLUDED) 50ohm coaxial cable to connect the antenna to a cellular device, cellular booster, cellular modem, or WiFi router.

Applications:

Commercial
Recreational
Government
Marine
Land

Features:

Maximum power for 4G, 5G, WiFi signals
9dBi omni-directional gain
Rugged UV stable polyurethane finish
Foam filled to withstand extreme vibrations
316 stainless steel base
Includes L bracket & U-Bolts
Weatherproof N female connector
5-year warranty

Specifications:

Radiation Pattern Omni-Directional
Gain 9dBi
Bandwidth VSWR (3G, 4G, 5G, WiFi) <1.5: 1 = 614-3000 MHZ
Cable Not Included
Impedance 50 ohms
Max Input Power 50 watts
Exterior Finish White polyurethane high gloss UV stable
Dimensions 8.875" L x 2.375" OD (225 x 60 mm
Weight 15 oz
RF Connector N type female
Installation Stainless Steel L bracket for pole/wall
Elements Copper - Hand soldered
Polarization Vertical
Wind Rating >160KPH
Operating Temp 30º F to +175º F
Warranty 5 Years
Compliance RoHS compliant

Quick Guide (pdf)

Digital Antenna Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni w/Bracket [1673-PW]
