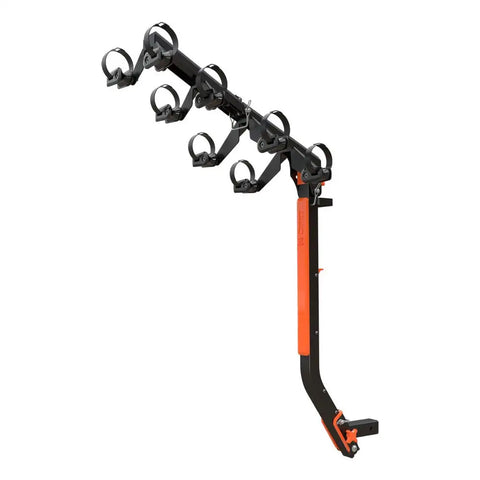

ActiveLink Ultra Series Bike Rack - 4 Bikes Up to 180 lbs

The ActiveLink Ultra bike rack is all about bringing maximum confidence and convenience to an active, outdoor lifestyle. It is built around the revolutionary ActiveLink technology from CURT, a hitch-mounted system that allows for fast, easy, and secure attachment of hitch accessories like never before. This model transports up to four bikes at once and is rated to hold up to 180 lbs.

It can also be used in a two-bike configuration. Unlike a traditional hitch connection that requires users to get down on their hands and knees and feel around grimy components to line everything up, this bike rack features the ActiveLink shank. Simply install the shank once in a receiver, and users can swap out accessories in a flash. The shank features a bottom bolt that provides a resting point for the accessory attachment, perfectly lining up the hitch pin holes for an effortless connection. Drop in the bike rack whenever users need it or swap it out in a snap. It’s that easy.

The ActiveLink 4-bike rack from CURT is constructed from high-strength steel and provides space to hang up to four bikes at one time. The underslung design allows the bike to easily be lifted onto the cradles from underneath with no threading needed, and the tiered, ascending configuration provides more clearance for the outer bikes. The premium cradles and rubber bumper on the vertical support tube keep the bikes secure while protecting the frames from scuffs and scratches. The rack also has a tilt-away pivot point for convenient access to a vehicle's rear cargo area, and the arms of the rack fold down as needed for compact storage. To help protect this CURT bike rack from the elements, it comes with a dual finish of A-coat and a durable black powder coat.

Features:

Patent-pending ActiveLink design for fast, secure attachment with pin and clip
Unique connection that allows users to easily swap out accessories as needed
Shank provides an integrated resting point for struggle-free installation
Bikes can easily be lifted onto cradles from underneath – no threading needed
Tiered ascending configuration improves clearance for outer bikes
Flip-back arm allows for better accessibility when loading inner bikes
Usable in 2-bike or 4-bike configuration (180 lbs. max weight capacity)
Rubber bumper pad on vertical support tube to protect from scuffs and scratches
Premium cradles accept various frame tube sizes
Tilt-away feature for easier access to the vehicle cargo area
Upper arms fold down when not in use for compact storage
Anti-rattle hitch pin and plastic lining on the shank for reduced noise
Integrated handle for easy removal and carrying
Steel construction with dual E-coat and carbide black powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)

Notes:

Includes bike rack and shank (compatible with ActiveLink shank only)
For use with any frame-mounted 2" class 3 or higher trailer hitch receiver. Clamp-on bumper receivers and traditional 4" square bumpers should not be used to mount bike racks. Do not exceed receiver weight limits.

Specifications:

Finish: Black Powder Coat
Hub Warehouse: D25
Installation Time (Exact): 0
Material: Carbon Steel
Max Load: 180 lbs.
Mount Type Description: Not applicable
Number of Bikes: 4
Receiver Tube Size: 2 in.
Warranty: Limited Lifetime warranty (one-year finish, one-year parts)

CURT ActiveLink Ultra Series Bike Rack - 4 Bikes Up to 180 lbs [18412]
