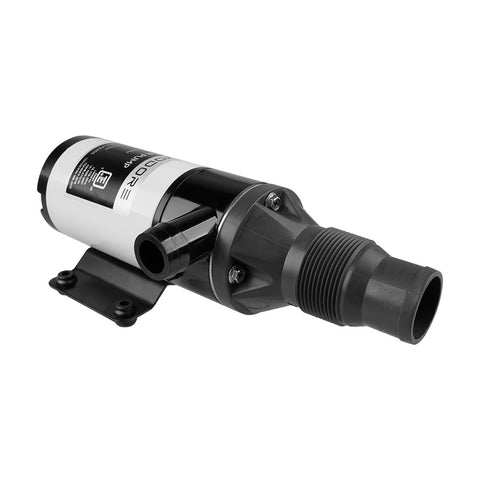

12 GPM Macerator Pump - 12V

The Macerator Pump is engineered to tackle the toughest marine and RV waste management challenges. Featuring a powerful quad-blade chopping system and a triple-sealed motor, this pump is built to easily handle the emptying of holding tanks, fish boxes, and livewells. Its robust design includes anti-clog technology, ensuring consistent operation even with challenging debris.

This pump delivers an impressive 12 GPM flow rate, allowing you to empty a 30-gallon tank in less than three minutes. With a self-priming suction up to 4 feet, the Macerator Pump guarantees reliable performance every time. Designed for durability, the pump's sealed motor is o-ring protected, thermally shielded, and powder-coated to resist both internal and external corrosion. The quick-connect wiring system simplifies installation and replacement, making this pump a dependable choice for marine and RV applications.

Features:

Quick-Connect Wiring: Features threaded outlets and quick-connect wiring for seamless installation and maintenance. Replace the motor or base in seconds, not hours! Allows the user to switch the pump out in seconds between the quick disconnect base, quick disconnect wiring, and quick disconnect plumbing.
Quad-Blade Chopping Design: The advanced quad-blade system efficiently grinds waste, minimizing the risk of clogs and ensuring consistent operation even with demanding tasks.
High Flow Rate: Delivers a powerful 12 GPM (45 LPM), making it ideal for quickly emptying holding tanks, livewells, and fish boxes in less than three minutes.
Triple-Sealed Motor for Durability: Features o-ring sealed end bells, sealed bearings, and a powder-coated shell, protecting the motor from internal and external corrosion in harsh marine environments.
Self-Priming to 4 Feet: The pump’s self-priming capability ensures reliable suction, making it suitable for varied installation heights and conditions.
Anti-Clog Technology: Includes a rear anti-clog system and an easy-access knob for clearing blockages, ensuring smooth operation during waste disposal.
Ignition Protected: Designed to meet ISO 8846 Marine standards, making it safe for use in engine compartments and other confined spaces.
Quick-Connect Wiring: Simplifies installation and replacement, saving time and effort for users during maintenance or upgrades.
Run-Dry Protection: Built-in thermal sensors allow the pump to run dry for short periods, preventing damage during priming or unexpected interruptions.
Warranty: Backed by a 4-year warranty, providing peace of mind and reliable performance.

Specifications:

Voltage: 12V
Open Flow Rate: 12 GPM (45 LPM)
Ports: 1-1/2” MNPT Inlet, 1” Hose Barb Outlet
Impeller Material: Rubber & Copper
Max Draw: 12.0A (12V) / 6.0A (24V)
Dimensions (L x W x H): 13.78" x 5.12" x 4.33" (35.0 x 13.0 x 11.0 cm)

Included Components:

Commodore DC Macerator Pump (12V)
1-1/2” MNPT Inlet Adapter
1” Hose Barb Outlet Adapter
Quick-Connect Wiring System

Specifications:

Color: Black/White
Gallons Per Minute: 12
Inlet Size: 1-1/2"
Operation Method: Electric
Outlet Size: 1"
Type: Macerator Pumps
Volts: 12
Box Dimensions: 4"H x 6"W x 13"L WT: 5.6 lbs
UPC: 817683023116

Brochure (pdf)

Commodore 12 GPM Macerator Pump - 12V [CM-1-12MP]
