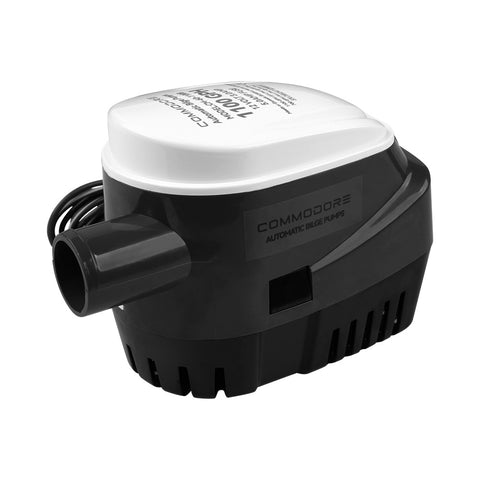

1100 GPH 60 Series Automatic Bilge Pump - 12V

The 1100 GPH 60-Series Automatic Bilge Pump is the ultimate all-in-one solution for boat owners seeking powerful, reliable, and efficient water removal. Featuring a built-in float switch, this automatic bilge pump eliminates the need for additional components, activating only when water levels rise and shutting off when the bilge is clear. Designed to withstand harsh marine environments, it comes equipped with a high-torque motor, advanced seals, and an anti-fouling impeller for superior longevity and performance.

Maintenance is simplified with a snap-off strainer base for easy cleaning and a quick-connect wiring system, allowing the motor cartridge to be replaced in seconds. Built to meet ISO 8846 and ISO 8849 standards, the 1100 GPH bilge pump is fully submersible and ignition-protected, providing unmatched safety and reliability on the water.

Features:

All-in-One Automatic Design: The Integrated float switch detects rising water levels and automatically activates the pump, shutting off when the bilge is clear. No separate float switch is needed, simplifying installation.
Powerful and Reliable Performance: With a flow rate of 1100 GPH and a high-torque motor, this pump ensures fast and efficient water evacuation, keeping your bilge dry and safe.
Anti-Fouling Impeller and Debris Protection: The advanced impeller design resists fouling, while the snap-off strainer base protects the impeller and float switch from debris, ensuring smooth operation.
Quick-Connect Motor Cartridge: Replace the motor in seconds without the need to remove the base or plumbing. This user-friendly feature simplifies maintenance and minimizes downtime.
Oil-Resistant Activation: Will not activate in the presence of straight motor oil, ensuring accurate water detection and preventing unnecessary operation.
Meets Marine Safety Standards: Fully submersible and ignition protected, this pump meets or exceeds ISO 8846, ISO 8849, SAE J1171, ABYC C-1500, and ABYC H-22 standards for safety and performance.
Compact and Lightweight Design: With dimensions of 6.14 x 3.62 x 4.57 inches and a weight of only 1.33 lbs (0.6 kg), this pump is easy to install and fits in tight bilge spaces.
4-Year Warranty: Backed by Commodore's industry-leading 4-year warranty, providing peace of mind and reliable operation.

Specifications:

Voltage: 12V
Flow Rate: 1100 GPH (Gallons Per Hour)
Outlet Diameter: 1-1/8 inch (29mm)
Current: 3.0A (Max Draw: 6.0A)
Wire Lead: 3 feet (1 meter), 18 AWG
Weight: 1.02 lbs (0.47 kg)

Why Choose the Commodore 1100 GPH Automatic Bilge Pump?

The Commodore 1100 GPH Bilge Pump is a premium solution for boat owners seeking reliable automatic bilge management. With its all-in-one design, built-in float switch, and superior debris protection, this pump guarantees efficient and hassle-free operation. Its robust construction, ease of maintenance, and compliance with marine safety standards make it the perfect companion for any watercraft.

Specifications:

Gallons Per Hour: 1100
Operation: Automatic
Outlet Size: 1-1/8"
Volts: 12
Box Dimensions: 4"H x 5"W x 6"L WT: 1.3 lbs
UPC: 817683023079

Brochure (pdf)

Commodore 1100 GPH 60 Series Automatic Bilge Pump - 12V [CM-60-1100B]
