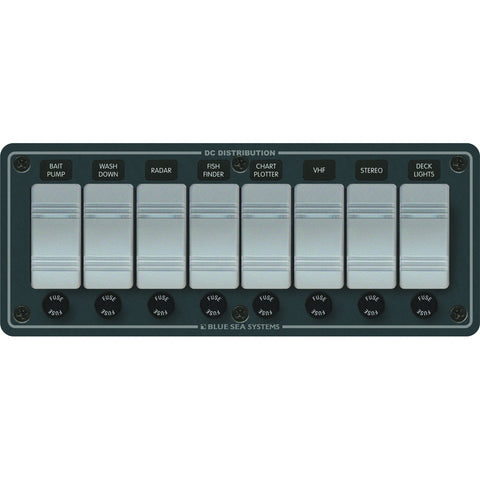

8261 Waterproof Panel 8 Position - Slate Grey

Features:

Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
Designed for flybridge and open cockpit applications
ON-OFF Contura Switches
ON indicating LEDs embedded in switches
Watertight mounting gasket included
Countersunk mounting holes throughout
Two-part polyurethane slate gray finish
Industry standard height and width
Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
Completely wired and ready to install

Specifications:

Weatherproof: Water Resistant
Positions: 8
Nominal Voltage: 12v / 24v
Panel Cumulative Rating: 90A
Switch Rating: 20A @ 12v DC / 15A @ 24v DC
Height: 3.75"
Width: 9.37"
Depth: 3"

Included:

(8) 5021 Panel Mount AGC/MDL Fuse Holder
(1) 8214 Black 60 Label Set
(8) 8230 Contura Switch SPST Gray - Off-On

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Waterproof: Resistant
AC/DC: DC
Max Breaker Quantity: 8
Voltage: 12/24v
Box Dimensions: 7"H x 10"W x 10"L WT: 5.6 lbs
UPC: 632085082611

Owner's Manual (pdf)

Blue Sea 8261 Waterproof Panel 8 Position - Slate Grey [8261]
