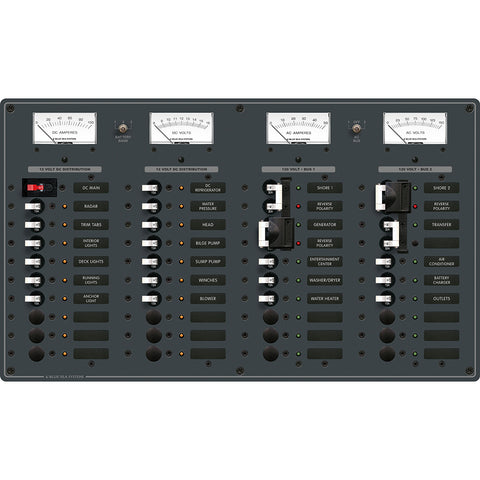

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

Features:

Includes set of 30 common AC and 30 common DC labels
All AC and DC buses installed, fully pre-wired
Label backlighting pre-installed
All LEDs installed
Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC

AC Features:

Two separate AC load groups with transfer switch to combine into one load group
Switch allows Ammeter and Voltmeter to read either AC load group
Reverse polarity indicators on both AC load groups
Ready for installation of optional 4031 AC Isolation Cover
9353, 0-150 Volt AC Voltmeter
9630, 0-50 Amp AC Ammeter

DC Features:

100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
8003, 8-16 Volt DC Voltmeter
8017, 0-100 Amp DC Ammeter

Specifications:

AC Positions: Source Selectors +12
DC Positions: Main +19
120 Volts AC
12 Volts DC
(3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
(1) 100A - (13) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Max Breaker Quantity: 12 AC / 19 DC
AC/DC: Both
Voltage: 120v/12v
Box Dimensions: 6"H x 15"W x 23"L WT: 12.5 lbs
UPC: 632085080860
