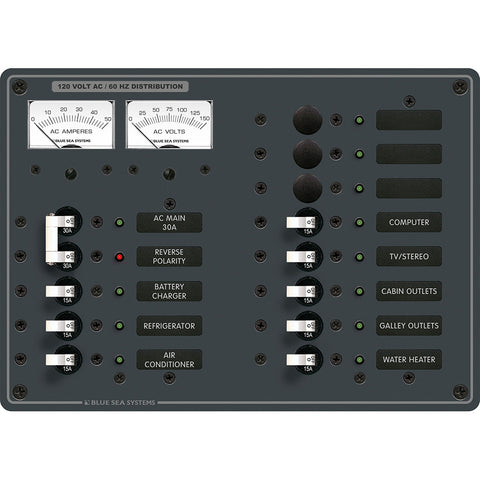

8076 AC Main +11 Positions Toggle Circuit Breaker Panel - White Switches

Features:

Red reverse polarity indicating LED
All hot, neutral and safety ground buses installed, fully pre-wired
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Specifications:

Positions: 11
Nominal Voltage: 120v AC
Height: 7.5"
Width: 10.5"

Included:

(1) 8031 Basic AC Panel Label Set - 30 Labels
(12) 8034 LED - 120v AC Green
(1) 8066 LED - 120v AC Red
(8) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
(1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
(1) 8244 AC Micro Voltmeter - 0 to 150v AC (Meter)
(1) 8246 AC Micro Ammeter - 0 to 50A w/ Coil (Meter)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

AC/DC: AC
Max Breaker Quantity: 11
Voltage: 120v
Box Dimensions: 5"H x 10"W x 13"L WT: 4.1 lbs
UPC: 632085080761

Owner's Manual (pdf)
