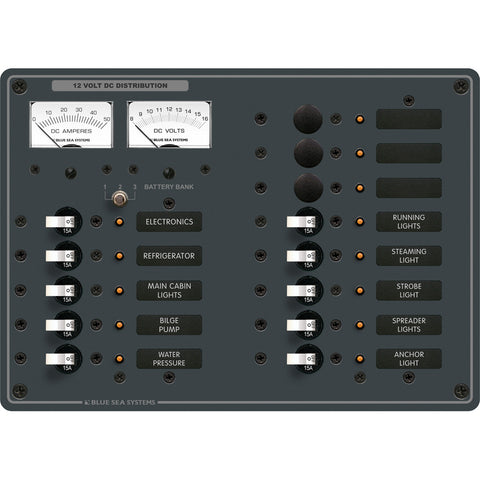

8068 DC 13 Position Toggle Branch Circuit Breaker Panel - White Switches

Features:

All positive, negative and grounding buses installed, fully pre-wired
Includes set of 30 common DC labels
Label backlighting pre-installed
All LEDs installed
Detailed installation instructions and cutout template
8028, 8-16 Volt DC Micro Voltmeter
8041, 0-50 Amp DC Micro Ammeter
10 15A Single Pole Circuit Breakers
Toggle Branch Circuit Breaker Panel

Specifications:

Positions: 13
Nominal Voltage: 12v DC
Maximum Amperage: 50A
Height: 7.5"
Width: 10.5"
Depth: 3"
Weight: 4.2 lbs

Included:

(10) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
(1) 8030 Basic DC Panel Label Set - 30 Labels
(1) 8028 DC Micro Voltmeter - 8 to 16v DC (Meter)
(1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

AC/DC: DC
Max Breaker Quantity: 13
Voltage: 12v
Box Dimensions: 5"H x 10"W x 13"L WT: 4.2 lbs
UPC: 632085080686

Quick Guide (pdf)
Owner's Manual (pdf)

Blue Sea 8068 DC 13 Position Toggle Branch Circuit Breaker Panel - White Switches [8068]
