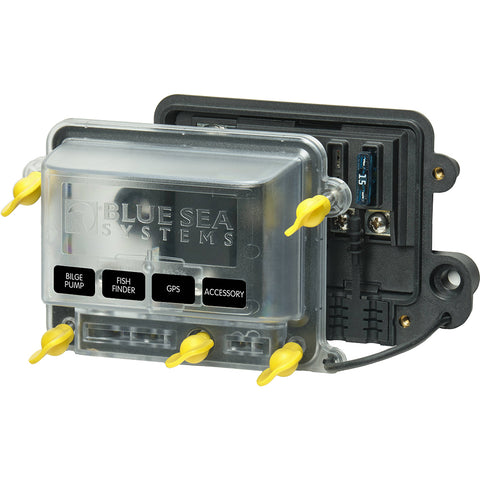

5056100 - Water Resistant ST-Blade Fuse Block with Cover

This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Now with wing screws for toolless access.

Features:

Water-resistant design with a standard ring or spade-type terminals
Allows for simple wiring with standard tools
Accepts a wide range of wire sizes
Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
Accepts ATO and ATC fast acting blade fuses
Accepts ATO/ATC-Style Low Profile Circuit Breakers
Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
5056100 meets ABYC/USCG insulation requirements
Tin-plated copper busses and fuse clips
Includes four write-on circuit labels
Spare fuse and fastener storage in cover
Wing screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

Cover - yes
- Maximum Voltage - 32V DC
- Bus Material - Tin-plated Copper
- Mounting Holes - Accepts 1/4" (6mm) screws
- Terminal Screws - 4 x # 8-32 with captive star lock washer
- Wire Size - Input - (1) 8 AWG to 4 AWG
- Wire Size - Load - (4) 16 AWG to 10 AWG

In the Box:

5056100 Busbar
Instruction Manual

*Sold as an Individual

Quick Guide (pdf)

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover [5056100]
