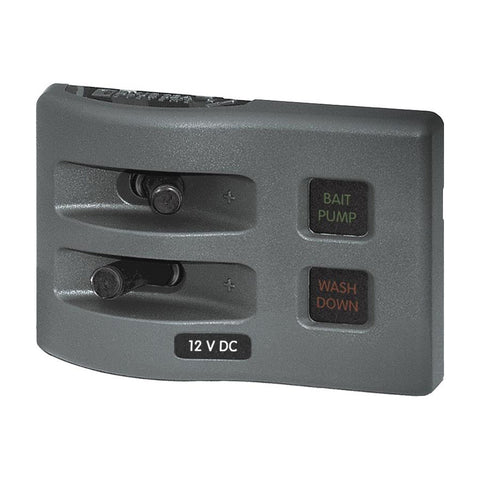

WeatherDeck™ Water Resistant Fuse Panel

PN: 4302

Color: Gray

Features:

Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 – protected against immersion up to 1 meter for 30 minutes
Designed for flybridge and open cockpit applications
Independent label back lighting circuit for remote switching and dimming
Each panel can be mounted in four different orientations
Integrated ATO/ATC fuse based circuit protection
Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

Weatherproof: Waterproof
Positions: 2
Nominal Voltage: 12v DC
Circuit Protection: Fuse
Maximum Amperage: 15A @ 12v DC (per circuit)
Panel Cumulative Rating: 30A
Backlit Label: Bicolored LED
Backlighting Amperage: 10mA/illuminated Circuit
Backlighting Voltage: 12v DC
Height: 2.6"
Width: 3.88"
Depth: 2.5"

Included:

(2) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
(1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
(2) 5242 ATO/ATC Fuse - 15 Amp

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Waterproof: Waterproof
AC/DC: DC
Max Breaker Quantity: 2
Voltage: 12v
Box Dimensions: 5"H x 6"W x 6"L WT: 0.5 lbs
UPC: 632085043025

Quick Guide (pdf)

Blue Sea 4302 WeatherDeck Water Resistant Fuse Panel - 2 Position - Grey [4302]
