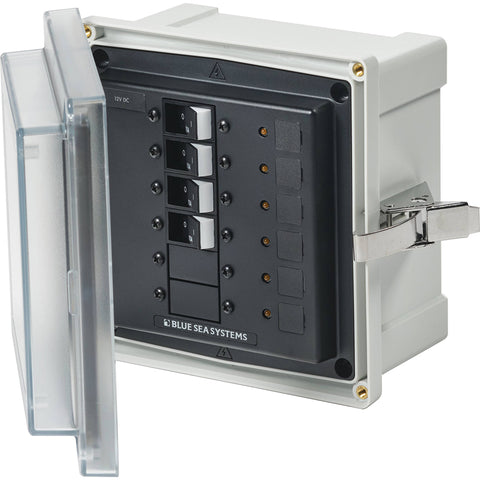

3134 - SMS Panel Enclosure with 4 Branch (12/24V) - 12/24V DC

The 3134-panel enclosure for DC circuit breakers and other large frame devices.

Features:

Blank apertures for custom breaker loading
Glass-filled polycarbonate base
Clear cover allows easy view of circuit breaker status
Overlapping cover for strength and increased gasket protection
Oversized, formed in place seamless PUR gasket
Easily removable stainless steel hinge pin for unobstructed installation
Stainless steel latch secures cover without penetrating the enclosure
Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
Includes waterproof glands
LED lights for backlighting and ON indication

Technical Specifications:

Circuit Breaker Type - 4 x Branch 12/24V DC (15A)
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 6 x Amber ON indicating 12/24V DC

In the Box:

*Sold as an Individual

Blue Sea 3134 - SMS Panel Enclosure w/4 Branch (12/24V) - 12/24V DC [3134]
