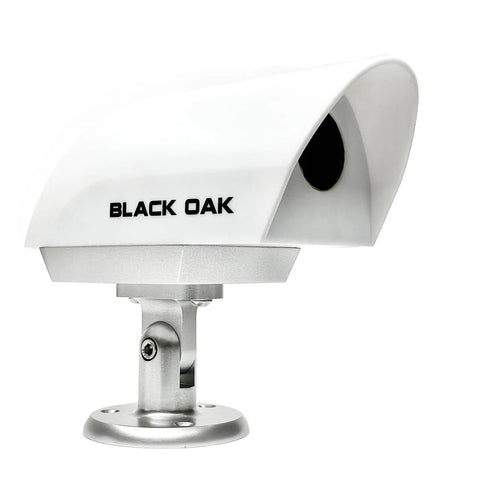

Nitron XD Night Vision Camera - White Housing - Standard Mount

The Nitron XD Marine Night Vision Camera displays the highest resolution possible, giving users crystal clear imagery in pitch black darkness. Without relying on thermal temperatures, users will have the perfect HD image in any nighttime condition. Boasting an IP69K rating, the Nitron XD can withstand the harshest environments.

With the ability to connect right into a Garmin, Simrad, Raymarine, or many other monitors, installing Black Oak's marine video camera is practically plug-n-play. With the included cable, plug right into a video input port.

*This version is the standard mount version

Hyper-Low Lux Sensor

Nitron XD was specifically designed to function in complete darkness, providing crystal-clear HD video in any nighttime environment, no matter the ambient temp.

2X The Resolution

See more than just silhouettes; Nitron XD shows details in full HD.

Marine Rated

This Black Oak' camera can withstand heavy spray and handle immersion up to 3 feet for over 60 hours.

Easy Installation

Black Oak includes everything needed to easily install, along with a plug-and-play harness to fully integrate with a MFD.

Plug-N-Play with MFD

Easily connect to a Garmin, Simrad, or other popular MFD with the supplied brand specific video input cable. See why Black Oak is the #1 night vision camera for boating.

Do it at Night

Turn night into day and achieve peace of mind with the ability to see channel markers, boats, buoys, and other hazardous objects.

Built to Last

With Black Oak's military-grade housing, there is no need to worry about this camera withstanding the harsh marine environments. Black Oak's camera is designed to handle any salt, corrosion, humidity, or moisture users throw at it.

Quick Connect

Take advantage of Black Oak's easy-access quick connect harness. With the ability to easily remove or attach, users never have to worry about leaving this camera.

Features:

.0000025 Lux starlight night vision
Two field of view options: 20 or 30 degrees
Streams 752 x 582 HD video
60 frames per second
Marine grade waterproof housing
Connect directly to a MFD
Flexible installation (top or bottom mount)
12Vdc power (fused)
NTSC/PAL analog video connection (BNC)
Manual vertical tilt adjustment
Marine grade IP69K waterproof housing

Technical Specifications:

Hyper Low Lux: .0000025
HD Resolution: 752(H) x 582(V)
Power Consumption: 1.38 Watts
Frame Refresh Rate: 60 frames per second
Noise Reduction: 3DNR
Length (front to end): 8-3/16”
Height (top to bottom): 6”

In the Box:

Nitron XD Marine Camera System
25' quick connect wiring harness
5A inline fuse
Anodized aluminum mounts

*Sold as an Individual

Specifications:

Reverse Image: Yes
Box Dimensions: 7"H x 10"W x 12"L WT: 3.75 lbs
UPC: 850044517350

Owner's Manual (pdf)

Black Oak Nitron XD Night Vision Camera - White Housing - Standard Mount [NVC-W-S]
