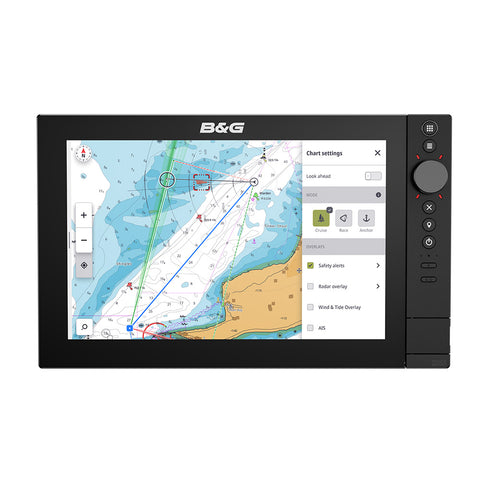

Zeus® SR 12 12" MFD with C-MAP DISCOVER X for US/Canada - No Sonar

C-MAP® X-Gen charts deliver the cutting-edge of navigation. Explore the stunning DISCOVER® X charts, zooming in and out in an instant. Discover new spots with incredible local detail. And explore after dark with a dedicated night mode. An upgrade to the stunning REVEAL® X adds incredible shaded relief and satellite imagery to your arsenal.

Revolutionary Safety Features

The X-Gen charts also unlock a host of ground-breaking features, such as the revolutionary C-MAP® Safety Alerts – built to automatically alert boaters to hazards up ahead, from shallow waters to buoys.

Ground-breaking Chart Management

In an industry first – the X-Chart Manager lets users manage C-MAP® chart updates and upgrades directly from the device, with the ability to choose custom areas for a near-instant download. And there are plenty of updates because X-Gen charts are always evolving, adding new details and features all the time.

Superior Integration

Our latest OS has integration at its core, with seamless networking across the entire boat. Connect to HALO® radars for superior safety and situational awareness. Unlock next-level performance with our Triton Edge and Hercules sailing processors. And bring the very best data to the helm with our famous wind sensors, which feed into our range of Triton and Nemesis® instruments.

High-definition SolarMAX™ IPS touchscreen, viewable from all angles, even with polarised glasses

Features:

Separate modes for Cruising, Racing and Anchoring
Award-winning sailing features like SailSteer™, LayLines, Routes and StartLine
Compatible with C-MAP® DISCOVER® X and REVEAL® X charts
C-MAP®-powered Safety Alerts
Full integration with HALO® radars, B & G Sailing Processors, Autopilots, Triton2 and Nemesis® instruments, wind sensors, and more
B & G App integration with 12 months premium subscription when registering a C-MAP® X Chart.
Wi-Fi 5, Gigabit Ethernet & NMEA 2000® networking
Support for up to four IP video cameras
Set up Wizard to get you up and running quickly
NMEA 0183 - No
NMEA 2000 - 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity - No
Video - Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras
Ethernet - 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)
Charts Supported - C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)
Dimensions (W x H x D) - Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.34″) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″)
Mounting Type - Bracket mount (bracket supplied). Rear mount (brackets supplied)
Weight - 2.8 kg (6.17 lb)
Warranty Period - 2 Years

Specifications:

Cartography Brand: C-Map Reveal X
Internal/External Antenna: Internal
Screen Size: 12"
Touchscreen: Yes

BG Zeus SR 12 12" MFD w/C-MAP DISCOVER X f/US/Canada - No Sonar [000-16024-001]
