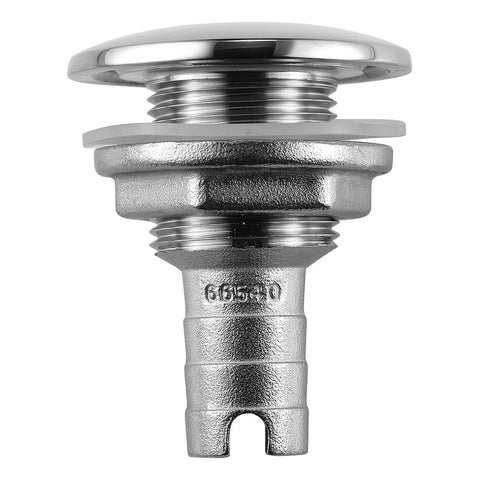

Stainless Steel Thru-Hull Short Straight Barbed - 3/4" Inner Diameter

Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?

Rugged Stainless Construction:

Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing

Faster, Simpler Installation:

Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps

Stainless Steel Straight Thru-Hulls, Barbed

Short Thread is a more compact size, which allows installation near corners and in confined areas

Specifications:

Hose size: (inch) 3/4" inner diameter
Flange Diameter: (inch) 1-7/8"
Thread O.D. (outside diameter): (inch) 1"
Thread Length: (inch) 1"
Barb Length: (inch) 1"
Total Length: (inch) 2-1/2"
Install Hole Saw Size: (inch) 1-1/8"
Thread NPSM: (inch) 3/4"
Max Hull Thickness: (inch) 5/8"

*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only

Specifications:

Hose Size: 3/4"
Material: Stainless Steel
Box Dimensions: 2"H x 3"W x 6"L WT: 0.4 lbs
UPC: 022697665416

Quick Guide (pdf)

Attwood Stainless Steel Thru-Hull Short Straight Barbed - 3/4" Inner Diameter [66541-3]
