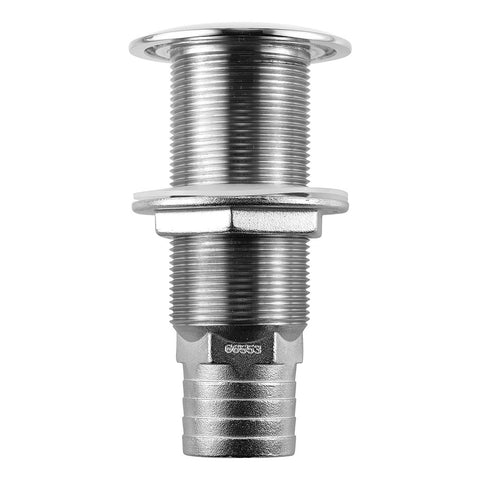

Stainless Steel Scupper Valve Barbed - 1-1/2" Hose Size

Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?

Rugged Stainless Construction:

Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing

Faster, Simpler Installation:

Each Scupper Valve is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps

Stainless Steel Scupper Valves, Barbed:

The Scupper Flap is tough neoprene rubber with a molded V that fits into the grooved body to reduce backwash
Fasteners are concealed and corrosion-proof

Specifications:

Hose size: (inch) 1-1/2" inner diameter
Thread Diameter: (inch) 1-7/8"
Flange O.D. (outside diameter): (inch) 3"
Thread Length: (inch) 3-1/2"
Barb Length: (inch) 1-1/2"
Total Length: (inch) 5-1/2"
Install Hole Saw Size: (inch) 2"
Thread NPSM: (inch) 1-1/2"
Max Hull Thickness: (inch) 3"

*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only

Specifications:

Hose Size: 1-1/4"
Material: Stainless Steel
Box Dimensions: 3"H x 3"W x 6"L WT: 3 lbs
UPC: 022697665539

Quick Guide (pdf)

Attwood Stainless Steel Scupper Valve Barbed - 1-1/2" Hose Size [66553-3]
