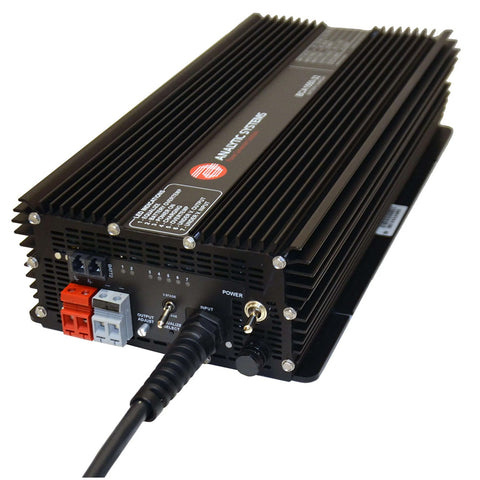

AC Charger 2-Bank 70A, 12V Out, 85-264VAC In Power-Factor Correction

The BCA1050 Series battery charger provides up to 1000 watts of charging power to a one- or two-bank battery system at 12, 24, 32, 36, 48, or 72 (rail) VDC from an 85 – 264 VAC source.

The BCA1050 Series chargers (BCA) and power supplies (PWS) are designed to supply a DC load or charge a battery at 12, 24, 32, 36, 48, or 72 (rail) VDC. The 1050 family provides up to 1000 watts of precision power, while the 1550 family can supply up to 1550 watts. These 1050 and 1550 families are identical to their previous models (1005 and 1505, respectively) in form, fit, and function as a direct drop-in replacement.

Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage. The PFC input stage increases efficiency over the previous auto-switching technology. It eliminates the dead spot between 110 and 220 VAC input, allowing the power supply to run continuously from 85 to 264 VAC at 45 to 65 Hz. Heavy input and output filtering also reduce EMI to deficient levels to prevent radio interference. Extra features include visual indicators for low input voltage, charging, and overtemperature.

Features:

Power Factor Corrected AC Input
Fast and accurate charging
Can function as a power supply
Visual indicators for operation and errors
Five-year parts and labor warranty

Specifications:

Function: Battery charger
Conversion: AC to DC
Power Level: 1000
Input Volts: 85 – 264 VAC, 110 VAC, 110/220 VAC, 220 VAC
Power Factor Corrected (PFC): Yes
Output Volts: 12 VDC
Output Amps Continuous: 80
Input/Output Isolation: Yes
Technology: Analog
Charging Stages: 3
Temperature Compensation: Yes
Equalize: Yes
Battery Banks: 2
Product Series on the website: BCA1050
Options Codes: 'Z' No Conformal Coating (Any Model), 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant

Specifications:

Charging Banks: 2
Box Dimensions: 9"H x 10"W x 22"L WT: 20 lbs

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.

Analytic Systems AC Charger 2-Bank 70A, 12V Out, 85-264VAC In Power-Factor Correction [BCA1050-12]
