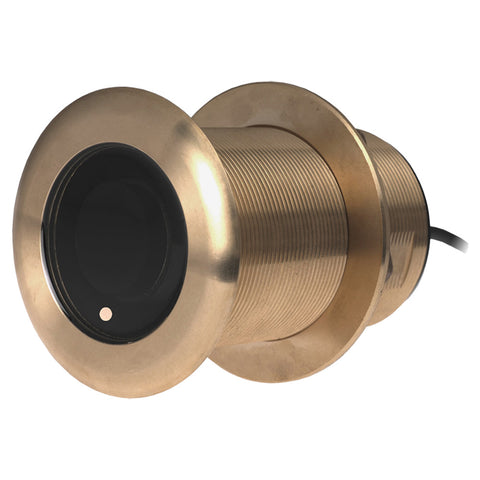

B60 20° Bronze Thru-Hull Mix & Match Cable Needed

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

Depth and fast-response water temperature sensing
600 W of power
Dual-frequency element:
50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
200 kHz with a 12° beamwidth for depth performance to 206 m (700')
Perfect for center-console or trailered boats
Low-profile bronze housing extends only 5 mm (3/16") outside the hull
No effect on your boat’s running performance
Bronze housing for fiberglass or wood hull
Also available in a stainless steel housing (SS60) for use with all hull materials

Specifications:

Power Rating: 600 W
Max Deadrise Angle: 24°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 8 m (26')
Hole Size: 60 mm (2-3/8")
Usable Shaft Length: 68.5 mm (2.70")
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
Conventional Beam: 45°/12°
Max Deadrise: Up to 24°
Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
Mounting Style: Tilted Element Thru-Hull
Retractable housing: No
Single or Dual Frequency: Conventional Dual Frequency
Tilted Element: Yes
Weight: 1.4 kg (3 lbs)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

Chirp: No
Imagining: Standard
Mounting Style: Thru-Hull
Speed Included: No
Temperature: Yes
Box Dimensions: 4"H x 8"W x 10"L WT: 4.5 lbs
UPC: 801769019537

Brochure (pdf)

Airmar B60 20 Bronze Thru-Hull Mix Match Cable Needed [B60-20-MM]
