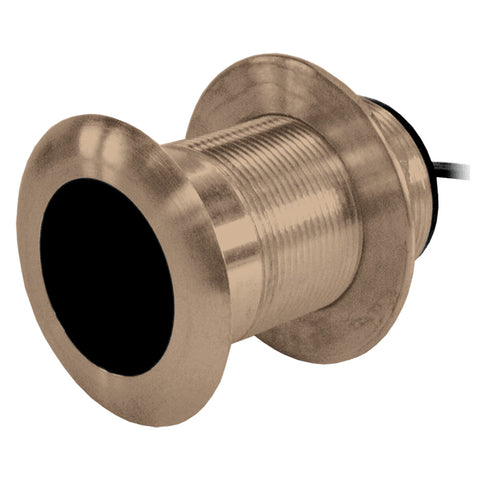

B117 50/200kHz 600W Mix & Match 0° Deadrise

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.

Features:

Depth only or depth and fast-response water-temperature sensing
600 W of power
Dual-frequency element:
50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
200 kHz with a 12° beamwidth for depth performance to 206 m (700')
Right-angle cable exit saves space and protects the transducer if stepped on
The included rubber washer allows tightening of the hull nut to irregular hull surfaces
Low-profile, bronze housing has minimal drag
Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials

Specifications:

Power Rating: 600 W
Max Deadrise Angle: 12°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 8 m (26')
Hole Size: 51 mm (2")
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
Conventional Beam: 45°/12°
Max Deadrise: Best performance through 7°. Accommodates up to 12°
Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
Mounting Style: Low Profile Thru-Hull
Retractable housing: No
Single or Dual Frequency: Conventional Dual Frequency
Weight: 0.9 kg (2 lbs.)

Specifications:

Chirp: No
Imagining: Standard
Mounting Style: Thru-Hull
Speed Included: No
Temperature: Yes
Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs
UPC: 801769000238

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.

Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]
