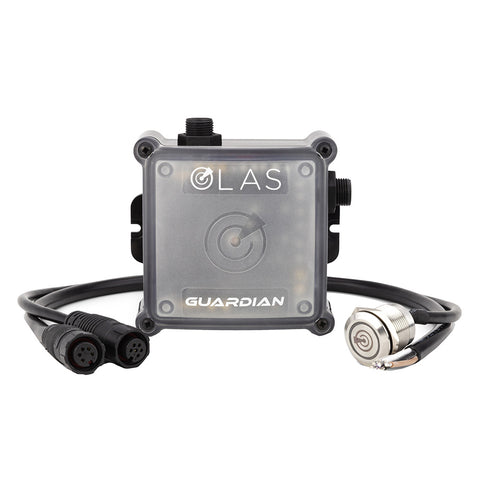

OLAS Exposure Series Guardian

The EXPOSURE OLAS Guardian is a small wireless engine kill switch that acts within two seconds of a person going overboard. It has the dual function of also acting as an instant Man Overboard (MOB) alarm system. The Guardian simply connects with up to 25 OLAS transmitters and can cover a vessel up to 50 feet.

In the Box

Guardian, OLAS Tag + Battery, Power Connection wires, Kill Cord connection wires, Stainless steel switch, User Guide, 5 x marine connectors.

The OLAS Guardian ensures that powerboat and RIB drivers can stop their boats instantly if the skipper or crew gets separated, preventing accidents from unmanned, uncontrolled vessels. They are free to move around their boat without constantly having to remember to attach, detach, and re-attach a physically wired kill cord.

Customizable Tag Modes

Engine stop - it acts as a kill cord, stopping the vessel when the tag is out of range, without triggering MOB alerts
MOB alert - it alerts the vessel without cutting the engine
Engine stop + MOB alert - this mode triggers crew alerts and cuts off the engine

How it works

Up to 25 OLAS transmitting devices (OLAS T2/ OLAS Tag/ OLAS Float-On) within range can be tracked around the vessel by the Guardian. This allows freedom for the crew and skipper to move around the vessel with confidence that if anyone falls overboard, either the engine will be cut off and/or an alarm will occur, and a swift recovery can be actioned.
The Guardian connects to a vessel's 12/24v power supply and existing kill switch using the supplied connectors, making it quick and easy to install with immediate usability.
A 21mm hole is required near the existing kill switch for the 20mm stainless steel, LED control switch to be installed.

(Professional installation is not required but is advised, as ACR Electronics does not accept any liability for incorrect installation.)

Who is it for?

OLAS Guardian is for drivers of power and motor boats, and all skippers and boat owners concerned about onboard safety. It wirelessly connects up to 25 crew members via wearable OLAS transmitters (T2, Tag, or OLAS Float On Light), creating a virtual kill cord.

Core Advantages

Run alongside existing Kill switch - The Guardian can be used in place of or alongside an existing kill cord switch and will operate if the physical kill cord has not been attached to the driver. - On most engines, a simple parallel connection to the existing kill switch will enable full wireless cut-off capability.
Automatic restart - After 5 seconds, the kill switch is deactivated, enabling the engine to be restarted
Inbuilt Alarm - An 85db alarm will sound to indicate an OLAS transmitter has gone out of range.
Inbuilt Emergency Light (if externally mounted) - A high-power emergency Red light will illuminate, offering a clear visual indication of an alert whilst also acting as a light to illuminate the surrounding area.
Relay selection - The OLAS App allows individual relay selection for easily adjusting if the OLAS transmitter triggers the engine cut-off/relay, or only triggers the Guardian's inbuilt MOB alarm.
Automatic connection - When users board their vessel and switch on the power, The Guardian will automatically connect to any switched-on OLAS transmitting devices within 2 2-meter range.
No connection alert and override - If users board the vessel and no transmitters are switched on, the Guardian will sound an alert. This alert can be stopped either by connecting the OLAS transmitter to the Guardian or the Guardian can be manually switched off. After which the vessel can be driven as usual using the existing physical, safety kill cord.
Pause mode - The system can be placed into pause mode. This is used when users need to leave the boat with the engine idling, such as walking down a pontoon, knowing the OLAS transmitter will go out of range.
Connects up to 25 OLAS Transmitters (OLAS T2, OLAS Tag, or OLAS Float-On) - Up to 25 transmitters allow larger vessels to connect crew and objects to the Guardian. Simply by attaching a transmitter to an object such as a MOB flotation device or yacht tender, users can always be aware if something has gone missing.
Extender compatible One or two OLAS extenders can be used to cover areas where transmitter signals may be blocked. This allows use on larger vessels up to 100ft.

Mobile App Features

The Guardian is easily operated via the OLAS App, free to download from the App Store for iOS and the Google Play Store for Android. The OLAS app requires a device running a minimum of IOS11 or Android 5.1 to work. The OLAS App is a powerful tool for controlling the Guardian's functions and for aiding in fast rescue. The app offers the following functionality:
Monitor all OLAS transmitters that are being tracked
Customize OLAS transmitter Names making them easy to allocate
Check battery status for OLAS transmitters
Add OLAS transmitters to the Guardian system.
Pause the Guardian system if transmitters are leaving the area for a short period.
Adjust the time before the Guardian reacts to an overboard transmitter between 2 seconds to 15 seconds, allowing more freedom around larger vessels.
Adjust between the cut-off switch and external alarm mode.
Kill switch mode activates the inbuilt switch for 5 seconds, cutting off the engine, but allowing users to restart the engine after 5 seconds.
External alarm mode activates the inbuilt switch until it is manually canceled. This allows external, high power, alarms to be connected in series.
Pause the alarm state.
Easily adjust individual transmitters between Engine cut-off (for the skipper), Alarm only (for passengers), and Pause (for passengers leaving the vessel temporarily).
sounding the external alarm if a Tag wearer is out of range on both the Guardian and a mobile device.
Maximum volume alarm and vibration on a mobile phone, synchronized with the Guardian.
Indication of which transmitter has triggered the alarm.
Record the GPS location of where the alarm was triggered
Clear guidance back to the GPS location where the alarm was triggered.
Clear display of the time and GPS location of where the alarm was triggered and the user's current location.
VHF emergency script with automatically input GPS coordinates and custom vessel information Solo Mode.
Designed for when users are boating on their own within 2G cellular range or offshore Wifi. Solo mode will send an automatic text message to a custom number with the user's location and time of the incident. If a self-rescue is managed an automatic text is sent canceling the alert.
Adjust the time before the cut-off switch or alarm is triggered – offering greater freedom.

Setup & Mounting

12/24V wired

The Guardian module can be connected to a vessel's power supply to ensure it is always connected when users have the power running. The power wires can simply be spliced into an existing power supply from the boat’s battery.

Through panel mounting

The compact, stainless steel switch requires minimum adjustment to an existing center console, allowing it to be fitted through a 21mm hole.

Color-coded control switch

The color-coded control switch makes the system easy to control and set, without the need for the OLAS App. During the setup process, it will indicate the automatic setup stages with a red indicator light. When the system is running it shows a green light, switching back to red in an alarm situation.

System Feedback

The GUARDIAN indicates how many OLAS transmitters are connected during the setup process. Transmitters can be added to the system either using the mobile application or through a simple inbuilt switching process.

Features:

OLAS Free Mobile App Integration
Ultra-Bright Red LED Visual Alarm
85 db Audible Alarm
Connect up to 25 OLAS Transmitters
Waterproof (IP67)
Utilizes the latest Bluetooth® Technology
Expand system coverage from 50 ft. to 100 ft. using the OLAS EXTENDER (x2)
12/24V Wired
Color-Coded Control Switch
Automatic engine restart
Relay selection
Automatic connection
No connection alert and override
Pause mode
Run alongside the existing Kill switch

Specifications:

Size: 3.6” (H) x 3.5” (L) x 1.5” (W)
Weight: 3.97 Ounces (112.5 g)
Color: Black and Clear
Operation: Press the button once to turn it on, all tags within 2 meters are tracked
Maximum Number of Connected OLAS Transmitters: Connects up to 15 OLAS Transmitters (OLAS Tags and/or OLAS Float-On)
Power / Current: 10-32V / 13-17mA
Visual Alarm: Red LED / 55 Lumens
Audible Alarm: 85 Decibels
Automatic Restart: After 5 Seconds
Automatic Connection: Automatically connects to any activated OLAS transmitter within a 2-meter range.
Relay Selection: Use the OLAS APP to select which crew members' transmitters should trigger the engine cut off, or only trigger the Guardians built-in alarm.
MOB System: Track up to 25 different OLAS transmitters with 1 phone/tablet. OLAS Transmitters can be tracked by an unlimited number of phones/tablets (Bluetooth 4.1 Compatible); The ALARM sounds within 2 seconds of a Man Overboard situation and shuts off the boat engines. The system records the MOB location using phone/tablet GPS and directs the boat back to the last known location for a quick and easy recovery; Compatible with the OLAS Extender, Mobile App, Float-On, and Tag.
Mobile App: IOS and Android (Free Download) - Connect multiple OLAS transmitters to 1 phone or tablet; Connect 1 OLAS transmitter to multiple phones/tablets; Solo Mode (Text Message Alerts to Emergency Contacts with GPS coordinates) Download the OLAS App on the App store or get it on Google Play: Search ‘EXPOSURE OLAS’
Range: For use with vessels up to 50 feet; Extend the coverage range on larger vessels with the OLAS EXTENDER for coverage on boats up to 100 feet (use of 2 Extenders).
Scalability: Upgrade a system with the OLAS Extender (extends the range of a MOB system from a vessel size of 50 ft up to 100 ft).
Buoyant: No
Waterproof: Yes (IP67)
Housing Material: ABS
Fuse: 1-3 Amp fuse recommended (not supplied)
Bluetooth: 4.2 + 5.0
Applications: Recreational and Commercial Boating
Accessories (included): OLAS Tag, Power Connection Cable, Kill Switch Cord Connector, and Stainless Steel Control Switch
Warranty: 1 Year
Approvals: FCC, RED, CE, RoHS 2.0

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.
